MT3608 2A Max DC-DC Step Up Power Module Booster Adjustable Power Supply

MT3608 2A Max DC-DC Step Up Power Module Booster Adjustable Power Supply

₹60.00 (Excluding 18% GST)
Product Code: BM_DC-Boost-MT3608
Reward Points 1
Availability: In Stock

OverView

MT3608 DC-DC Step-Up Boost Converter with adjustable pot Description...
International Shipping starts from 13 USD: DHL / Fedex (3-7 days priority delivery)

Product Description

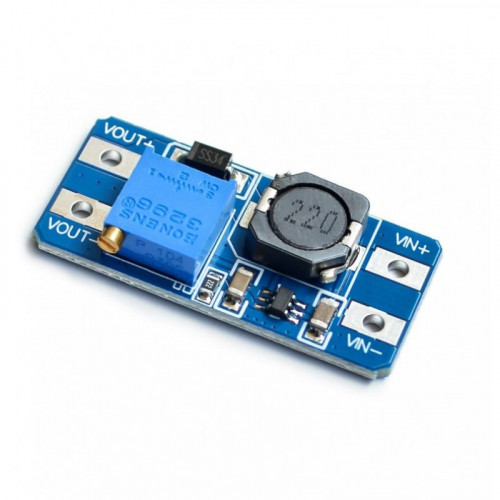

MT3608 DC-DC Step-Up Boost Converter with adjustable pot

Description

The MT3608 2A Max DC-DC Step Up Power Booster Module is a low-cost module that can step-up a 2 to 24V input voltage up to a 5 to 28V output at Max 2A current. DC-DC boost converters step up the input voltage to a higher voltage.

This boost converter is adjustable and capable of outputting a voltage in the range of 5.0 to 28V at a continuous current of up to 1.5A depending on input/output voltage settings with 1A available with most settings. Since it is a boost converter, the input voltage must be lower than the output voltage.

The device is able to use low ESR bulk ceramic capacitors rather than electrolytic caps which avoids long-term aging concerns and contributes to the compact packaging. The MT3608 converter IC has over-current and thermal limiting features built-in to safely shut the device down if driven too hard.

Specifications & Feature:
  • Its efficiency up to 93%.
  • It can source a good amount of current.
  • It is an low cost converter module.
  • Its simple to adjust to get your desired increase in voltage.
  • Input Voltage (V)         :2 ~ 24
  • Output Voltage(V) :5 ~ 28
  • Output Current(A) :2
  • Operating Temperature (C)  :-40 to +90
  • Efficiency                 :93%
  • Length (mm) :37
  • Width (mm) :17
  • Height (mm) :7
  • Weight (gm) :4

Module Connections:

This module is compact boards with 4 solder pads for making connections.

  • VIN+ = Input Voltage
  • VIN- = Ground
  • VOUT+ = Output Voltage
  • VOUT- = Ground. Connected to VIN- on the module.

Applications

  • DIY adjustable output vehicle power supply. Eg. provide 12V input, the output voltage can be continuously adjusted from 14V to 35V (output voltage cannot be lower than the input voltage).
  • Power supply for your electronic devices, as long as the voltage is adjusted to the voltage and does not exceed the module’s rated current


Note:

    Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load.
    Short circuit protection: None, please use caution to protect the module from very high current
    Input reverse polarity protection: None, please use a diode in series with the input to protect against input reverse polarity


    *Image shown is a representation only.
