6.8uH Shielded Inductor 12x12x7 (SMD - 6R8) - 6A - CD127 [CDRH127]

6.8uH Shielded SMD Inductor (CD127) - 6.6A, 12x12x7mm

The 6.8uH Shielded SMD Inductor (CD127) is designed for electronic applications. It features a ferrite drum core, providing inductance stability. The 12x12x7mm surface-mount design is suitable for space-constrained applications. A 6.6A maximum current rating supports power conversion tasks. Magnetic shielding minimizes electromagnetic interference, supporting signal integrity. Operation is specified across a temperature range from -40℃ to +100℃. This inductor is suitable for DC-DC converters, power supplies, and noise filtering circuits. Its Moisture Sensitivity Level (MSL) is 1.

Specifications:

• Inductance: 6.80µH
• Inductance Tolerance: ± 20%
• Inductor Case Style: SMD
• No. of Pins/Contact: 2
• Core Type: Ferrite Drum
• Max DC Current (IDC Max): 6.6A
• Shielding: Magnetically Shielded
• Dimensions (L×W×H): 12.3×12.3×8.0 mm Max
• Operating Temperature: -40℃ to +100℃
• Moisture Sensitivity Level: 1
• Weight: 4gm (approx)

Key features and benefits:

• 6.8µH inductance with ±20% tolerance.
• 12x12x7mm SMD form factor.
• 6.6A maximum DC current rating.
• Magnetically shielded design for EMI reduction.
• Ferrite drum core for inductance stability.
• Operating temperature range: -40℃ to +100℃.
• Moisture Sensitivity Level (MSL) 1.

Applications:

• DC-DC converters and power supply units.
• Noise filtering and suppression circuits.
• LED lighting drivers.
• Portable electronic devices.
• Automotive electronics.

Frequently Asked Questions:

Q: What is the inductance value and tolerance of this component?
A: The inductance is 6.80µH with a tolerance of ±20%.

Q: What is the maximum DC current rating for the CD127 inductor?
A: The maximum DC current (IDC Max) for this inductor is 6.6A.

Q: What are the physical dimensions and shielding type of this inductor?
A: The dimensions are 12.3×12.3×8.0 mm Max (L×W×H), and it features magnetic shielding.

Package Includes:

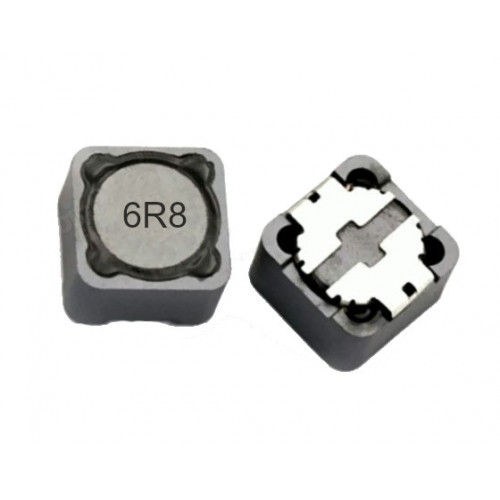

*Image shown is a representation only.
