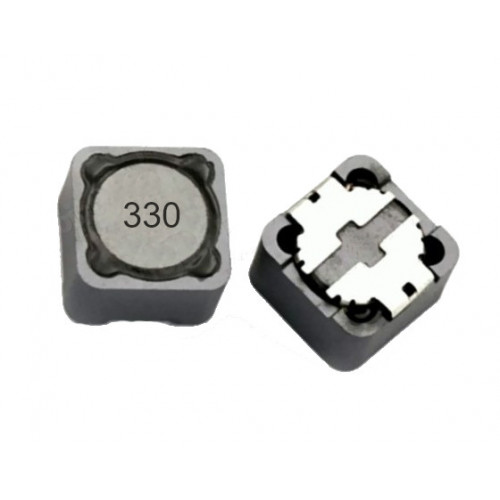

33uH Shielded Inductor 12x12x7 (SMD - 330) - 3A - CD127 [CDRH127]

33uH Shielded SMD Inductor 12x12x7mm - 3A Choke (CD127/CDRH127)

The 33uH Shielded SMD Inductor (CD127/CDRH127) is a surface-mount component. It features a 33µH inductance with a ±20% tolerance. The device measures 12.3×12.3×8.0 mm Max. It has a 3A maximum DC current rating. Magnetic shielding minimizes electromagnetic interference. A ferrite drum core provides inductance stability. This inductor is suitable for power conversion and filtering applications. It operates across a temperature range of -40℃ to +100℃.

Specifications:

• Inductance: 33µH
• Inductance Tolerance: ± 20%
• Inductor Case Style: SMD
• No. of Pins/Contact: 2
• Core Construction: Ferrite drum core
• Max DC Current (IDC Max): 3A
• Shielding: Magnetically shielded
• Dimensions (L×W×H): 12.3×12.3×8.0 mm Max
• Moisture Sensitivity Level: 1
• Operating Temperature Range: -40℃ to +100℃
• Storage Temperature Range: -40℃ to +100℃
• Weight: 4g (approx)

Key features and benefits:

• 33µH inductance with ±20% tolerance
• Magnetically shielded design
• 3A maximum DC current (IDC Max)
• 12.3×12.3×8.0 mm Max SMD footprint
• Ferrite drum core construction
• Operating temperature range: -40℃ to +100℃
• Moisture Sensitivity Level 1

Applications:

• DC-DC converters and switching power supplies
• Noise filtering and EMI suppression
• LED lighting drivers and power management
• Portable electronics and battery-powered devices
• Power conditioning circuits

Frequently Asked Questions:

Q: What is the inductance value of this component?
A: The inductance is 33µH with a tolerance of ±20%.

Q: What is the maximum current rating for this inductor?
A: The maximum DC current (IDC Max) is 3A.

Q: What are the dimensions of the 33uH Shielded SMD Inductor?
A: The dimensions (L×W×H) are 12.3×12.3×8.0 mm Max.

Package Includes:

*Image shown is a representation only.
