470uH Shielded Inductor 12x12x7 (SMD - 471) - 1A - CD127 [CDRH127]

470uH Shielded SMD Inductor 1A - CD127/CDRH127 Series

The 470uH Shielded SMD Inductor (CD127/CDRH127 series) is a high-performance component for diverse electronic applications. Its compact 12x12x7mm surface-mount footprint is perfect for space-constrained designs. With 470 microhenry inductance and a 1A current rating, it excels in various power management circuits. Magnetic shielding effectively minimizes electromagnetic interference (EMI), ensuring stable operation and reduced noise. Built with a robust ferrite drum core, it offers excellent reliability and durability. This inductor is ideal for DC-DC converters, power supplies, and filtering applications. It operates reliably across a wide temperature range from -40℃ to +100℃. Experience superior performance and design flexibility with this essential electronic component.

Specifications:

• Inductance: 470µH
• Inductance Tolerance: ±20%
• Inductor Case Style: SMD
• No. of Pins/Contacts: 2
• Core Construction: Ferrite drum core
• Max DC Current (IDC Max): 1A
• Shielding: Magnetically shielded
• Dimensions (L×W×H): 12.3×12.3×8.0 mm Max
• Moisture Sensitivity Level: 1
• Operating Temperature Range: -40℃ to +100℃
• Storage Temperature Range: -40℃ to +100℃
• Weight: 4gm (approx)

Key features and benefits:

• High 470µH inductance with ±20% tolerance for precise circuit tuning.
• Magnetically shielded design minimizes EMI and crosstalk, ensuring signal integrity.
• Compact SMD package (12.3x12.3x8.0mm max) for space-saving designs.
• Robust ferrite drum core construction ensures high reliability and durability.
• Capable of handling a maximum DC current of 1A for power applications.
• Wide operating temperature range from -40℃ to +100℃ for diverse environments.
• Low moisture sensitivity level (MSL 1) for easy handling and storage.

Applications:

• DC-DC converters and switching power supplies.
• EMI filtering and noise suppression in sensitive circuits.
• Portable electronic devices requiring compact power solutions.
• LED lighting drivers and automotive electronics.
• Industrial control systems and automation equipment.
• General electronics projects and prototyping.

Package Includes:

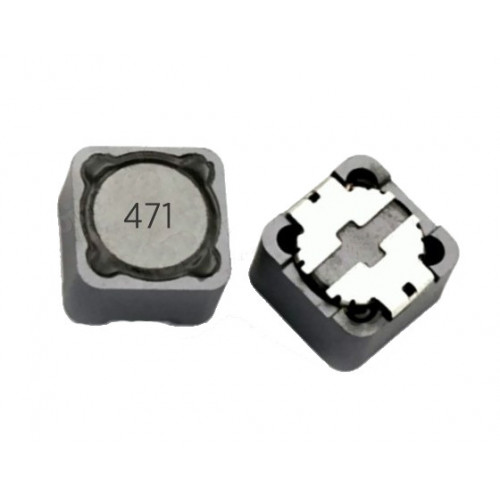

*Image shown is a representation only.
