2pcs: 1uH SMD 0805 Power Inductor High Frequency 800ma 238 ohm - 10%

1uH SMD 0805 High-Frequency Power Inductor, 800mA, 10% Tolerance, 238 Ohm DCR (2-Pack)

This offering includes two 1uH SMD 0805 power inductors. Each inductor features an 800mA current rating and a 10% tolerance. The 0805 package facilitates surface mounting on PCBs. Ferrite core material is utilized. These components are RoHS compliant. They are specified for high-frequency operation. DC resistance is 238 ohm. The test frequency is 90 MHz.

Specifications:

• Case/Package: 0805
• Mount Type: Surface Mount
• Inductance: 1 uH
• Tolerance: ±10 %
• Current Rating: 800 mA (0.8A)
• DC Resistance (DCR): 238 ohm
• Test Frequency: 90 MHz
• RoHS Status: Compliant
• Length: 2 mm
• Width: 1.2 mm
• Height: 0.9 mm
• Core Material: Ferrite

Key features and benefits:

• 0805 surface mount package.
• 1uH inductance, ±10% tolerance.
• 800mA current rating.
• 238 ohm DC Resistance (DCR).
• Ferrite core material.
• RoHS compliant.
• Specified for high-frequency operation.

Applications:

• DC-DC converters.
• Power supply modules.
• RF circuits.
• Noise filtering circuits.
• LED lighting drivers.

Frequently Asked Questions:

Q: What is the physical size of the 0805 package?
A: The 0805 package measures 2 mm in length, 1.2 mm in width, and 0.9 mm in height.

Q: What is the maximum current rating for these inductors?
A: Each inductor has a maximum current rating of 800 mA (0.8A).

Q: Is this inductor suitable for RF applications?
A: Yes, these inductors are specified for high-frequency operation, with a test frequency of 90 MHz, making them suitable for RF circuits.

Q: What is the tolerance of the 1uH inductance?
A: The inductance tolerance is ±10%.

Package Includes:

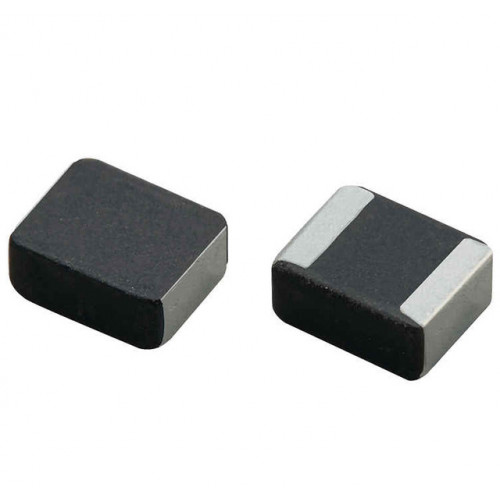

*Image shown is a representation only.
