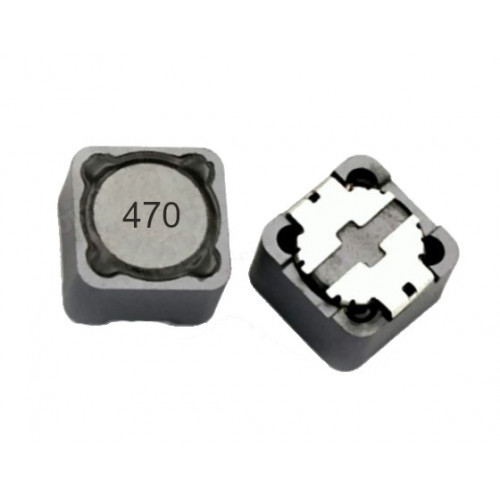

47uH Shielded Inductor 12x12x7 (SMD - 470) - 2.5A - CD127 [CDRH127]

47uH Shielded SMD Inductor CD127 (CDRH127) - 2.5A, 12x12x7mm

The CD127 is a 47uH shielded SMD inductor. It features a 2.5A current rating. The component has a 12x12x7mm footprint. Magnetic shielding reduces electromagnetic interference (EMI). A ferrite drum core provides inductance stability. This inductor supports power conversion, filtering, and energy storage. It is a surface mount component. Operating temperature range is -40℃ to +100℃. Applications include automotive, industrial, and portable electronic devices.

Specifications:

• Inductance: 47µH
• Inductance Tolerance: ±20%
• Inductor Case Style: SMD
• Number of Pins/Contacts: 2
• Core Construction: Ferrite Drum
• Maximum DC Current (IDC Max): 2.5A
• Shielding: Magnetically Shielded
• Dimensions (L×W×H): 12.3×12.3×8.0 mm Max
• Moisture Sensitivity Level: 1
• Operating Temperature Range: -40℃ to +100℃
• Storage Temperature Range: -40℃ to +100℃
• Weight: 4gm (approx)

Key features and benefits:

• 47µH inductance with ±20% tolerance.
• SMD case style (12x12x7mm).
• Magnetically shielded construction for EMI reduction.
• 2.5A current rating.
• Ferrite drum core.
• Operating temperature range: -40℃ to +100℃.
• Two-pin configuration.
• Moisture Sensitivity Level 1 (MSL 1).

Applications:

• DC-DC Converters and Power Supplies.
• EMI/RFI Filtering.
• LED Lighting Drivers.
• Portable Electronic Devices.
• Automotive Electronics.
• Industrial Control Systems.

Frequently Asked Questions:

Q: What is the package type for this inductor?
A: This inductor is a Surface Mount Device (SMD) with a 12x12x7mm footprint.

Q: Can this inductor be used in high-temperature environments?
A: Yes, it has an operating temperature range of -40℃ to +100℃.

Q: Does this inductor reduce electromagnetic interference?
A: Yes, it features magnetically shielded construction to minimize EMI.

Package Includes:

*Image shown is a representation only.
