IRFP150N - MOSFET N Channel Transistor - TO-247 [Original IRF]

IRFP150N N-Channel Power MOSFET Transistor - TO-247

The IRFP150N is a high-performance N-Channel Power MOSFET from International Rectifier, housed in a robust TO-247 package. Utilizing advanced HEXFET technology, this transistor delivers exceptional efficiency and reliability for demanding power applications. Its unique processing ensures very low on-state resistance, minimizing power loss and enhancing overall system performance. Coupled with high transconductance, it offers superior switching characteristics. The IRFP150N also boasts excellent reverse energy and diode recovery dv/dt capability, crucial for robust operation. Designers will appreciate its voltage control, very fast switching speeds, and ease of paralleling for scalable power solutions. Furthermore, it exhibits remarkable temperature stability of electrical parameters, ensuring consistent performance across varying conditions. This makes it an ideal choice for a wide range of industrial and consumer electronics.

Specifications:

• Drain to Source Voltage (VDS): 100 V
• Drain to Gate Voltage (VDGR): 100 V
• Continuous Drain Current (ID): 44 A
• Continuous Drain Current (ID @ 100°C): 12 A
• Pulsed Drain Current (IDM): 4A
• Gate to Source Voltage (VGS): ±20 V
• Maximum Power Dissipation (PD): 155 W
• Linear Derating Factor: 1.03 W/°C
• Pulse Avalanche Rating: 6, 14, 15
• Operating & Storage Temperature (TJ, TSTG): -55 to 150 °C
• Package: TO-247
• Brand/Make: International Rectifier

Key features and benefits:

• Isolated Central Mounting Hole for easy installation
• Repetitive Avalanche Ratings for enhanced ruggedness
• Dynamic dv/dt Rating for reliable switching
• Simple Drive Requirements for straightforward circuit design
• Ease of Paralleling for scalable power solutions
• Voltage Control for precise operation
• Very Fast Switching speeds for high-frequency applications
• Temperature Stability of electrical parameters

Applications:

• Switching Mode Power Supplies (SMPS)
• Motor Control circuits
• DC-DC Converters
• High-speed switching applications
• Industrial power management systems

Package Includes:

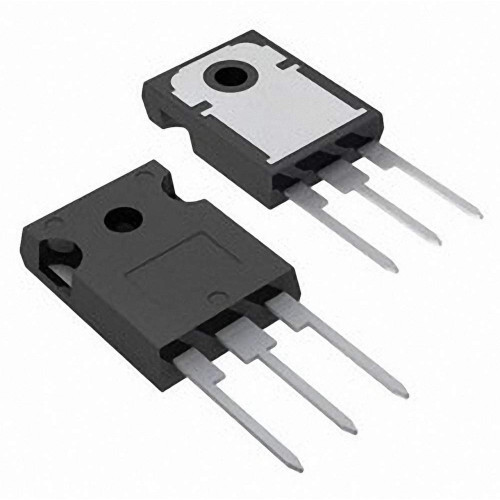

*Image shown is a representation only.
