Arduino Pro Mini - ATMEGA 328P - 5V 16Mhz - Clone Compatible module (High Quality)

  • Product Code: TAP_AU_328_ProMini
  • Availability: In Stock
  • ₹250.00
  • ₹230.00 (+ GST)

  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)

Arduino Pro Mini moudle board - Compatible with Arduino - Atmega 328P smd - (Unsoldered Pins)

Pro Mini module board is a 5V Arduino running at 16MHz boot-loader. Pro Mini ATMEGA328P come without soldered pins, using the berg pin provided as per the application users can solder it.

It’s a compact board that will get started up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off board.

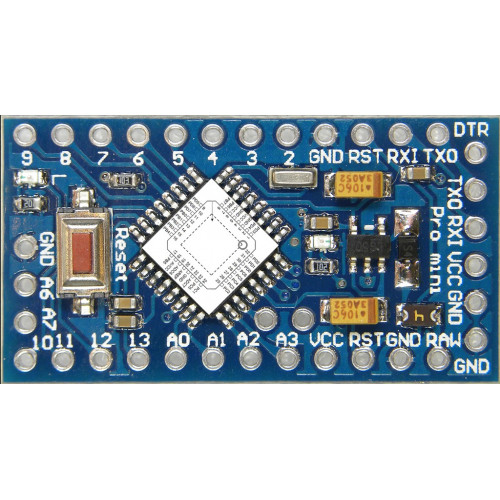

The Pro Mini is a micro-controller board base on the smd ATmega328.  It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.

A six pin header can be connected to an FTDI cable to provide USB power and communication to the board. The Pro Mini Arduino is intended for semi-permanent installation in objects or exhibitions. The pin layout is compatible with the Mini Arduino.

Specification & Features
  • Circuit Operating Voltage: 5V
  • Clock frequency: 16MHz.
  • Digital I/O Pins: 14
  • 8 analog input port: A0 ~ A7
  • A pair of TTL level serial port transceiver : RX / TX
  • 6 PWM port: D3, D5, D6, D9, D10, D11
  • Use For Atmel Atmega328P-AU microcontroller
  • Support serial download

Package Includes :

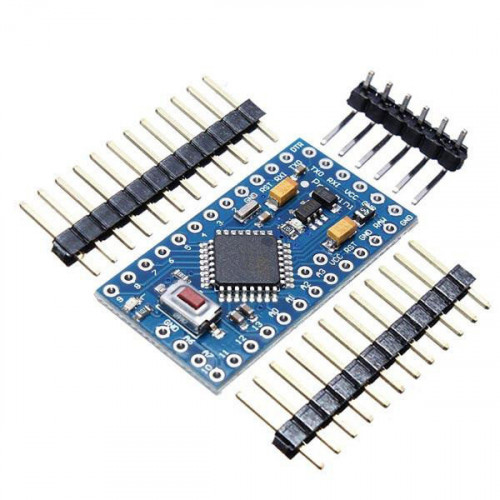

1 x Pro mini 5v/16mHZ compatible with arduino (with Bergs pin to solder)

*Image shown is a representation only.
