NEO-M8N GPS with Compass for Pixhawk

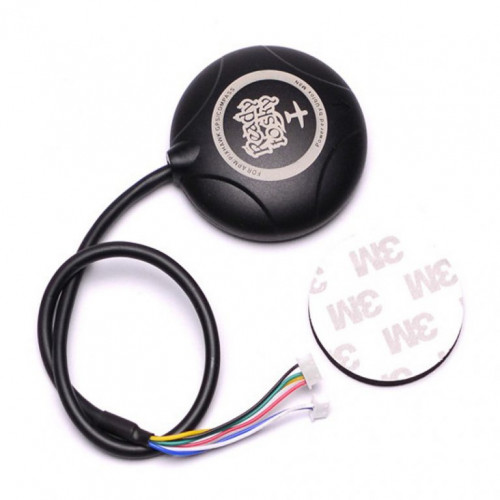

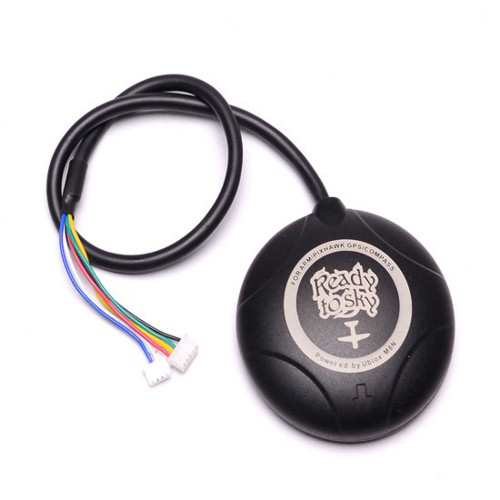

Ublox NEO-M8N GPS Module with Integrated Compass for Pixhawk & APM

The Ublox NEO-M8N GPS module provides navigation data for drone platforms. It features an integrated compass for direct connection with Pixhawk flight controllers. Positional accuracy ranges from 0.6 to 0.9 meters. The module supports GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1 GNSS protocols. Satellite acquisition typically locks onto up to 6 satellites in ten seconds. Low power consumption supports extended operation. Compatibility extends to APM Flight Controllers via a connector swap. The compass operates at a 10Ghz refresh rate with a low noise figure.

Specifications:

• GPS Chipset: Ublox NEO-M8N
• Positional Accuracy: 0.6 to 0.9 meters
• Supported GNSS Protocols: GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
• Satellite Acquisition: Up to 6 satellites in about ten seconds
• Compass Refresh Rate: 10Ghz
• Compass Noise Figure: Low
• Flight Controller Compatibility: Pixhawk, APM Flight Controllers
• Power Consumption: Low
• Connector Type: 5-pin (for APM compatibility)

Key features and benefits:

• Ublox NEO-M8N GPS module
• Integrated compass for Pixhawk direct connection
• Positional accuracy: 0.6 to 0.9 meters
• Supports GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1 protocols
• Rapid satellite acquisition: up to 6 satellites in approximately ten seconds
• Low power consumption
• 10Ghz compass refresh rate with low noise figure
• Compatible with APM Flight Controllers (requires 5-pin connector swap)

Applications:

• FPV flying and racing drones
• Camera ships and aerial photography platforms
• Autonomous drone navigation and waypoint missions
• GPS telemetry for flight analysis
• Robotics projects requiring precise positioning

Frequently Asked Questions:

Q: What flight controllers are compatible with the Ublox NEO-M8N GPS module?
A: The Ublox NEO-M8N GPS module is compatible with Pixhawk flight controllers directly and APM Flight Controllers with a 5-pin connector swap.

Q: What is the positional accuracy of the Ublox NEO-M8N GPS module?
A: The Ublox NEO-M8N GPS module provides a positional accuracy between 0.6 and 0.9 meters.

Q: Which GNSS protocols does the Ublox NEO-M8N module support?
A: The module supports GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1 GNSS protocols.

Package Includes:

*Image shown is a representation only.
