XT60 Connectors - Male/Female Pair (High Amp Connectors - Gold Plated)
- Product Code: RM_QF_XT60_FM
- Availability: In Stock
-
₹39.00 (+ GST)
- 10 or more quantity/sets : ₹37.00
- 25 or more quantity/sets : ₹35.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

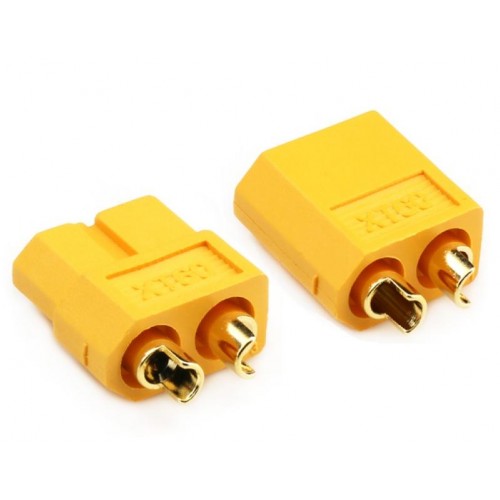

XT60 Male/Female Connector Pair - High Amp, Gold Plated
The XT60 Male/Female Connector Pair is an industry-standard solution for power delivery. These connectors are designed for demanding RC applications, drones, and robotics. Construction utilizes durable high-temperature nylon. Gold-plated spring pins and sockets ensure superior conductivity and minimal resistance. The design incorporates reverse polarity prevention. This safeguards connected electronic components. A secure connection is maintained under vibration and high current conditions. They are suitable for battery connections, ESCs, and motor setups. These connectors offer reliable power system integration.
Specifications:
- Connector Type: XT60 Male/Female Pair
- Material: High-Temperature Nylon
- Contact Material: Gold-Plated Copper
- Current Rating (Continuous): Up to 60A
- Current Rating (Peak): Up to 90A
- Polarity Protection: Yes (Anti-reverse design)
- Connection Type: Solder
- Operating Temperature: -20°C to 120°C
- Weight (per pair): Approx. 5.5g
Key features and benefits:
- High-current XT60 Male/Female connector pair
- Constructed from high-temperature resistant nylon
- Gold-plated spring pins and sockets for optimal conductivity
- Anti-reverse polarity design
- Provides a secure connection
- Low resistance for efficient power transfer
- Durable and reliable for demanding applications
Applications:
- RC (Radio Control) hobby vehicles
- Drones and multirotors
- Robotics projects
- LiPo battery connections
- ESCs (Electronic Speed Controllers)
- Motor power leads
Frequently Asked Questions:
Q: What is the continuous current rating for XT60 connectors?
A: XT60 connectors have a continuous current rating of up to 60A.
Q: What materials are used in XT60 connectors?
A: XT60 connectors are constructed from high-temperature nylon with gold-plated copper contacts.
Q: Do XT60 connectors feature polarity protection?
A: Yes, XT60 connectors incorporate an anti-reverse polarity design.
Package Includes:
1 x Male XT60 Connector. 1 x Female XT60 Connector.*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
