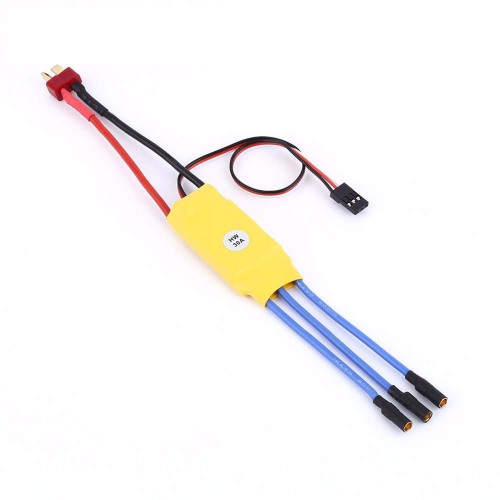

30A BLDC ESC - Brushless Motor Speed Controller with Connectors
- Product Code: RM_QF_ESC-30A
- Availability: Out Of Stock
-
₹270.00 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
30A BLDC ESC Brushless Motor Speed Controller with Connectors
The 30A BLDC ESC is a Brushless Motor Speed Controller. It provides control for brushless motors. This ESC is capable of driving motors up to 30A. It operates on 2S-3S LiPo batteries. An integrated 5V/2A BEC supplies regulated power. The unit includes pre-fitted Male Deans (XT-60) for battery connection. Female 3.5mm Gold Socket connectors are pre-fitted for motor connections. It is compatible with A2212 brushless motors (1000kv, 1400kv, 2200kv).
Specifications:
- Current Capacity: 30A
- Battery Compatibility: 2S-3S LiPo
- BEC Output: 5V/2A
- Recommended Motors: A2212 brushless motors (1000kv, 1400kv, 2200kv)
- Battery Connector: Male Deans (XT-60)
- Motor Connectors: Female 3.5mm Gold Socket
Key features and benefits:
- Provides precise motor speed control
- Drives motors with current draw up to 30A
- Operates on 2S-3S LiPo batteries
- Onboard 5V/2A BEC provides regulated power
- Includes pre-fitted Male Deans (XT-60) battery connector
- Includes pre-fitted Female 3.5mm Gold Socket motor connectors
Applications:
- Quadcopters and multi-rotors
- Drone and flight projects
- Robotics applications requiring precise motor control
- RC aircraft and vehicles
- DIY electronics projects
Frequently Asked Questions:
Q: What battery types are compatible with this ESC?
A: This ESC is compatible with 2S-3S LiPo batteries.
Q: What is the BEC output voltage and current?
A: The integrated BEC provides an output of 5V at 2A.
Q: What motor connectors are pre-fitted on this ESC?
A: Female 3.5mm Gold Socket connectors are pre-fitted for motor connections.
Q: What battery connector type is included?
A: A Male Deans (XT-60) connector is pre-fitted for battery connection.
Q: What is the maximum continuous current capacity of this ESC?
A: The ESC has a continuous current capacity of 30A.
Package Includes:
1 x 30A BLDC ESC Brushless Motor Speed Controller with Connectors.*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
