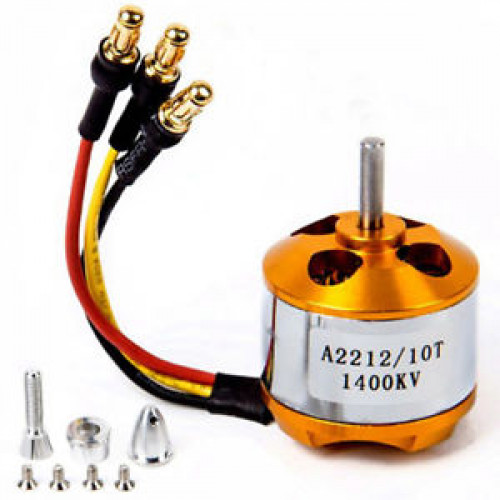

A2212 - 1400KV BLDC Brushless Motor

A2212 1400KV BLDC Brushless Outrunner Motor for Drones & Robotics

The A2212 1400KV BLDC Brushless Motor is an outrunner DC motor designed for drone and robotics applications. It features a 1400KV rating. This motor supports both clockwise (CW) and counter-clockwise (CCW) rotation. It is compatible with medium-sized quadcopters. Propeller sizes from 8-inch to 10-inch are supported. The motor is suitable for frames such as the F450. Optimal operation is achieved with a 30A ESC. It is configured for 2-3 Li-Poly battery cells.

Specifications:

• KV Rating: 1400KV
• No Load Current @ 10V: 0.5A
• Current Capacity: 12A/60s
• No. of Li-Poly Cells: 2-3S
• Motor Dimensions: 27.5 x 30mm
• Shaft Diameter: 3.17mm
• Minimum ESC: 18A (30A Suggested)
• Thrust (3S, 1045 Prop): 1200g approx
• Thrust (3S, 0945 Prop): 750g approx
• Thrust (3S, 0845 Prop): 650g approx

Key features and benefits:

• 1400KV BLDC outrunner motor
• Supports Clockwise (CW) and Counter-Clockwise (CCW) rotation
• Optimized for medium-sized quadcopters and multirotors
• Compatible with 8-inch to 10-inch propellers
• Recommended for 2-3 Li-Poly battery configurations
• Thrust up to 1200g with 3S, 1045 Prop
• Shaft diameter: 3.17mm

Applications:

• FPV racing drone construction and upgrades
• Medium-sized aerial photography quadcopter power systems
• Custom DIY multirotor and drone projects
• Educational robotics platforms
• General RC aircraft applications

Frequently Asked Questions:

Q: What battery configuration is compatible with the A2212 1400KV motor?
A: The A2212 1400KV BLDC motor is compatible with 2-3S Li-Poly battery configurations.

Q: What ESC is recommended for the A2212 1400KV motor?
A: A 30A ESC is suggested for optimal performance with the A2212 1400KV BLDC motor. An 18A ESC is the minimum requirement.

Q: What propeller sizes are suitable for the A2212 1400KV motor?
A: The A2212 1400KV BLDC motor is compatible with 8-inch to 10-inch propellers.

Package Includes:

*Image shown is a representation only.
