40A BLDC ESC - Brushless Motor Speed Controller with Connectors

40A BLDC ESC - Brushless Motor Speed Controller with Connectors

The 40A BLDC ESC Electronic Speed Controller is designed for quadcopters and multi-rotors. It provides precise motor speed control for brushless motors. This ESC supports continuous current up to 40A, with a maximum burst of 50A for less than 10 seconds. Operating voltage ranges from 2S to 6S LiPo batteries or 4-10 cell Ni-MH/Ni-CD batteries. An integrated 3A BEC delivers a stable 5V output for flight controllers and onboard electronics. Compatibility is ensured with brushless motors drawing less than 40A. Advanced low battery voltage protection is included for LiPo cells. The unit features a programmable brake function.

Specifications:

• Model: Standard 40A BLDC ESC
• Constant Current: 40A (Max 50A <10s)
• BEC Output: 5V / 3A
• LiPo Cells: 2-6S
• Ni-MH/Ni-CD Cells: 4-10 Cells
• Mass: 23g
• Dimensions (LxWxH): 45 x 24 x 9 mm

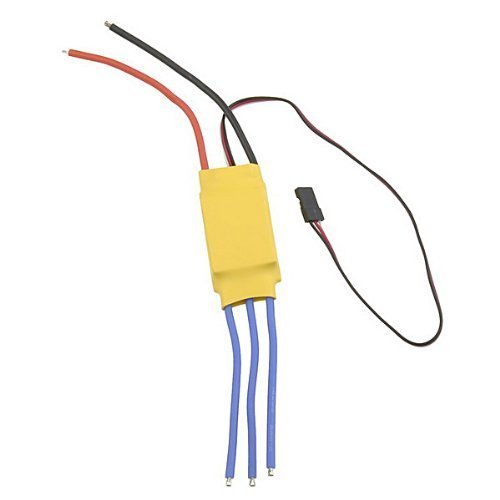

• Color: Yellow
• Brake Function: On/Off
• Low Voltage Cut-off (LiPo): 3.0V/cell (slow down), 2.9V/cell (cut-off)

Key features and benefits:

• 40A continuous current handling (50A burst <10s)
• 2-6S LiPo and 4-10 cell Ni-MH/Ni-CD battery compatibility
• Integrated 5V/3A BEC for auxiliary power
• Compact dimensions (45 x 24 x 9 mm) and low mass (23g)
• Advanced low battery voltage protection for LiPo cells
• Programmable brake function (On/Off)

Applications:

• Quadcopter and Multi-rotor Drones
• RC Airplanes and Fixed-wing Models
• DIY Drone and Robotics Projects
• Brushless Motor Control Systems
• Aeromodelling and Hobbyist Builds

Frequently Asked Questions:

Q: What battery types are compatible with this 40A BLDC ESC?
A: The ESC supports 2-6S LiPo batteries and 4-10 cell Ni-MH/Ni-CD batteries.

Q: What is the function of the integrated BEC?
A: The integrated 3A BEC provides a stable 5V output to power flight controllers and other onboard electronics.

Q: What is the maximum continuous current supported by this ESC?
A: This ESC supports a continuous current of 40A, with a burst capability of 50A for less than 10 seconds.

Package Includes:

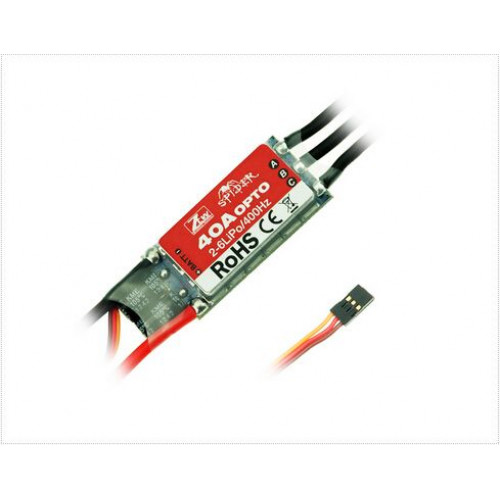

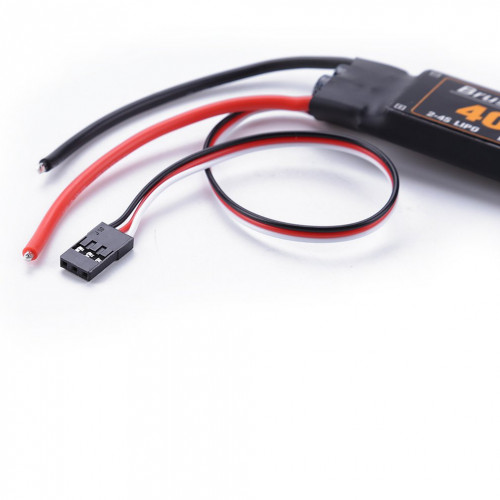

*Image shown is a representation only.
