XL4015 DC-DC 5A Step-Down adjustable power supply board + heatsink [High Quality]

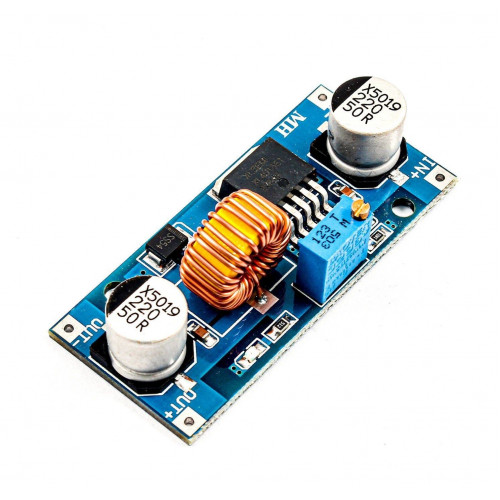

XL4015 DC-DC 5A Step-Down Adjustable Power Supply Module with Heatsink

The XL4015 DC-DC 5A Step-Down Buck Converter is an essential module for a wide range of electronic projects. It efficiently converts higher DC input voltages into a stable, lower adjustable DC output. With an input range of 4V to 38V, it can deliver an output from 1.25V to 36V. This powerful board supports up to 5 Amperes of continuous output current, making it suitable for demanding applications. Boasting an impressive 96% efficiency, it minimizes power loss and heat generation. The included heatsink further enhances thermal management, ensuring long-term reliability. Its precise voltage regulation and low ripple output guarantee clean power for sensitive circuits. Ideal for DIY power supplies, portable devices, and industrial equipment, this module offers robust performance. Experience stable and consistent power delivery for all your electronic needs.

Specifications:

• Input Voltage: 4V to 38V DC
• Output Voltage: 1.25V to 36V DC (Adjustable)
• Max. Output Current: 5A
• Max. Output Power: 75W
• Efficiency: Up to 96%
• Switching Frequency: 180 kHz
• Load Regulation: ±0.5%
• Voltage Regulation: ±0.5%
• Module Dimensions (LxWxH): 54mm x 24mm x 16mm
• Weight: 16g
• Heatsink Dimensions (LxWxH): 16mm x 11mm x 5mm

Key features and benefits:

• High-efficiency DC-DC step-down conversion up to 96%.
• Adjustable output voltage from 1.25V to 36V DC.
• Supports up to 5A continuous output current.
• Integrated heatsink for enhanced thermal performance and reliability.
• Low output ripple and excellent line/load regulation for stable power.
• Built-in thermal shutdown, current limit, and output short protection.
• Fixed 180 kHz PWM frequency for stable and efficient operation.

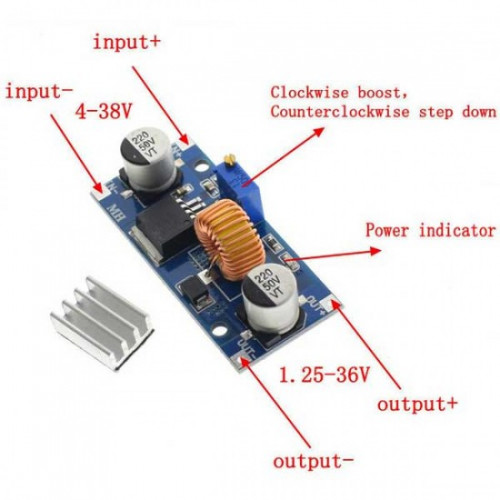

• Convenient features include a variable resistor, power LED, and mounting holes.

Applications:

• Creating custom DIY adjustable power supplies.
• Powering portable devices like LCD monitors and TVs.
• Providing stable power for telecom and networking equipment.
• Charging Lithium-Ion and LiPo batteries.
• Powering industrial equipment, motors, and sensors.
• Vehicle power supplies for notebooks and other electronics.

Package Includes:

*Image shown is a representation only.
