330uH Shielded Inductor 12x12x7 (SMD - 331) - 1A - CD127 [CDRH127]

330uH Shielded SMD Power Inductor 1A (CD127/CDRH127) - 12x12x7mm

The 330uH Shielded SMD Power Inductor (CD127/CDRH127) provides 330 microhenry inductance. It has a 1A current rating. The 12x12x7mm surface-mount design facilitates PCB integration. Magnetic shielding minimizes electromagnetic interference. This component supports DC-DC converters, power supply filtering, and noise suppression circuits. It incorporates a ferrite drum core for stable performance. Operation is specified from -40℃ to +100℃.

Specifications:

• Inductance: 330µH
• Inductance Tolerance: ± 20%
• Inductor Case Style: SMD
• Maximum DC Current (IDC Max): 1A
• Shielding: Magnetically shielded
• Dimensions (L×W×H): 12.3×12.3×8.0 mm Max
• Operating Temperature Range: -40℃ to +100℃
• Core Construction: Ferrite drum core
• Moisture Sensitivity Level (MSL): 1
• Weight: 4gm (approx)

Key features and benefits:

• 330µH inductance with ±20% tolerance.
• Surface Mount Device (SMD) package.
• Magnetic shielding for EMI reduction.
• Maximum DC current (IDC Max) of 1A.
• Ferrite drum core construction.
• Dimensions: 12.3x12.3x8.0 mm Max.
• Operating temperature range: -40℃ to +100℃.
• Moisture Sensitivity Level (MSL): 1.

Applications:

• DC-DC converters and power supply modules.
• EMI filtering and noise suppression circuits.
• LED lighting drivers.
• Portable electronic devices.
• General purpose power filtering.

Frequently Asked Questions:

Q: What is the mounting type for this inductor?
A: This inductor features a Surface Mount Device (SMD) package for PCB mounting.

Q: What is the inductance tolerance of this component?
A: The inductance tolerance is ±20%.

Q: What is the maximum DC current rating?
A: The maximum DC current (IDC Max) is 1A.

Q: What are the physical dimensions of this inductor?
A: The dimensions are 12.3×12.3×8.0 mm Max (L×W×H).

Q: Does this inductor provide EMI shielding?
A: Yes, it is magnetically shielded to minimize electromagnetic interference.

Package Includes:

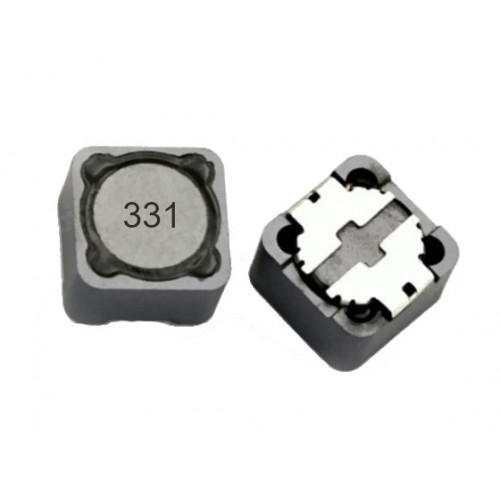

*Image shown is a representation only.
