24V 2A HB2E - DPDT Pcb mount Relay (Matsushita - Original)

24V 2A HB2E DPDT PCB Mount Relay (Matsushita - Original)

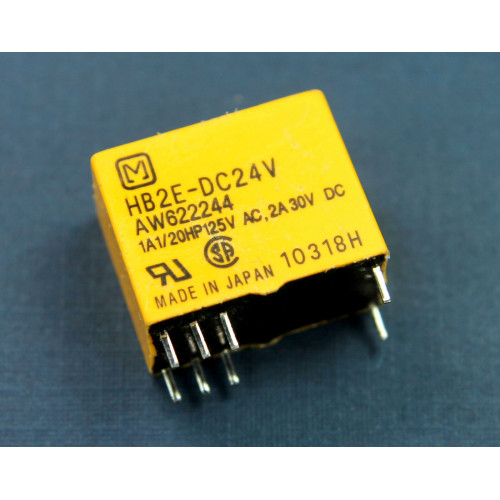

The Matsushita HB2E DPDT PCB mount relay provides circuit switching. This component operates with a 24V DC operating voltage and handles a 2A DC switching current. It features a compact design and high sensitivity. The relay incorporates gold-clad over silver-nickel contacts. It exhibits low coil current consumption and is RoHS compliant. This component is suitable for integration into various electronic systems. Its design supports applications requiring a DPDT relay configuration. The relay dimensions are 20 x 18 x 11 mm.

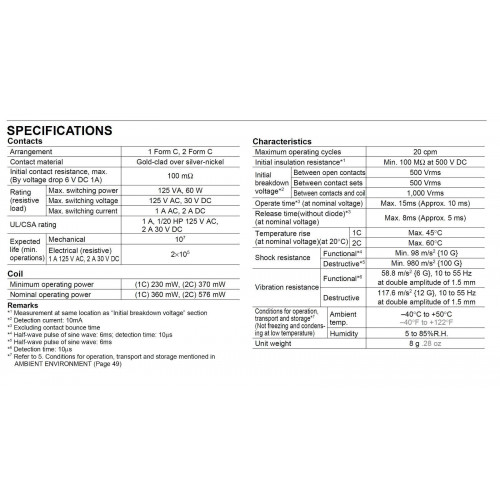

Specifications:

• Contact Material: Gold-clad over silver-nickel
• Initial Contact Resistance: 100m ohm
• Switching Power: 125VA, 60W
• Switching Voltage: 125V AC, 30V DC
• Switching Current: 1A AC, 2A DC
• Operating Voltage: 24V DC
• Nominal Operating Power: 576 mW
• Operating Time: 15ms
• Release Time: 8ms
• Brand/Make: Matsushita (Original)

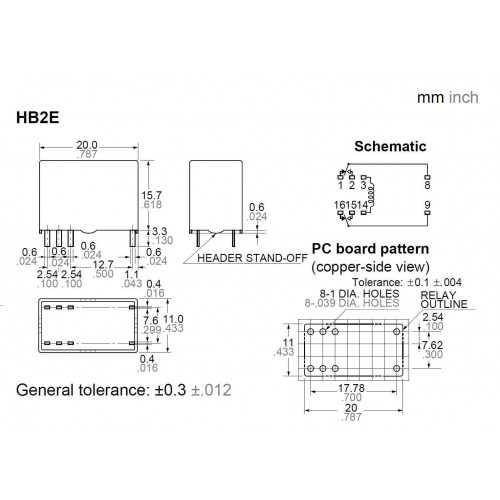

• Dimension: 20 x 18 x 11 mm

Key features and benefits:

• Original Matsushita component
• Double Pole Double Throw (DPDT) contact configuration
• Low coil current consumption
• RoHS compliant
• Compact size
• High sensitivity
• Gold-clad over silver-nickel contacts

Applications:

• Industrial control systems
• Home automation and smart devices
• Automotive electronics and vehicle systems
• Robotics and embedded control circuits
• HVAC and climate control units

Frequently Asked Questions:

Q: What is the operating voltage for this relay?
A: This relay operates at 24V DC.

Q: What is the maximum switching current for DC applications?
A: The maximum DC switching current is 2A.

Q: What are the physical dimensions of the HB2E relay?
A: The relay measures 20 x 18 x 11 mm.

Q: Is this relay suitable for PCB mounting?
A: Yes, this is a PCB mount relay.

Q: What type of contact configuration does this relay have?
A: This relay features a Double Pole Double Throw (DPDT) contact configuration.

Package Includes:

*Image shown is a representation only.
