HF102F - 12VDC - KT522 - GI-S-112DMFH - 20A SPST PCB Mount Miniature High Power Relay

HF102F 12VDC 20A SPST PCB Mount Miniature High Power Relay

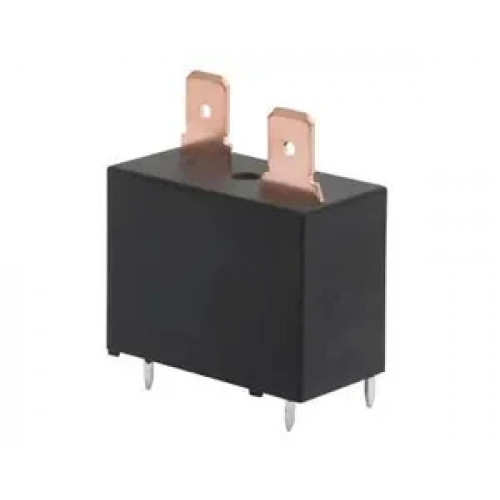

The HF102F is a high-power, miniature PCB-mount relay. It is engineered for robust switching applications up to 20A. This relay is ideal for industrial, automotive, and home automation systems. Featuring a Single Pole Single Throw (SPST) configuration, it ensures reliable performance for high-current loads. It operates efficiently on a 12V DC coil voltage. Built for durability, it withstands demanding environments. Its compact design allows for easy integration into various circuits. This makes it a versatile component for power management.

Specifications:

• Brand: Hongfa / KYOTA / Goodsky (as available)
• Model: HF102F / KT522 / GI-S-112DMFH
• Coil Voltage: 12V DC

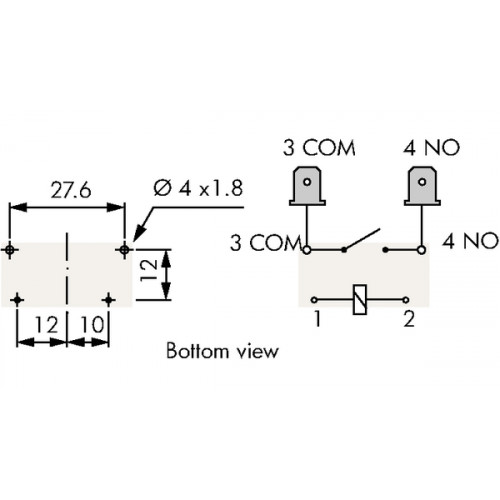

• Contact Configuration: SPST (Single Pole Single Throw)
• Contact Rating: 20A @ 250V AC / 20A @ 30V DC
• Coil Power Consumption: 0.9W – 1.2W
• Mounting Type: PCB Mount
• Operating Temperature: -40°C to +85°C
• Dielectric Strength: 1500V AC (coil to contacts)
• Insulation Resistance: ≥100MΩ @ 500V DC

Key features and benefits:

• High switching capacity: Rated for 20A, suitable for heavy-duty applications.
• 12V DC coil voltage: Ensures compatibility with standard control circuits.
• SPST (Single Pole Single Throw) configuration: Simplifies circuit design and wiring.
• Compact PCB mount design: Offers a space-saving form factor for easy integration.
• Reliable and stable performance: Guarantees consistent operation with low power consumption.
• Durable contacts: Engineered for long-lasting, high-efficiency switching.

Applications:

• Home automation and smart appliances
• Industrial control and automation systems
• Power management and distribution circuits
• HVAC systems and motor control applications
• Automotive and battery management systems

Package Includes:

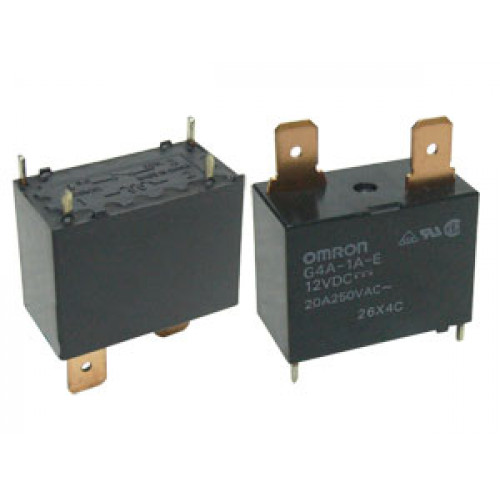

*Image shown is a representation only.
