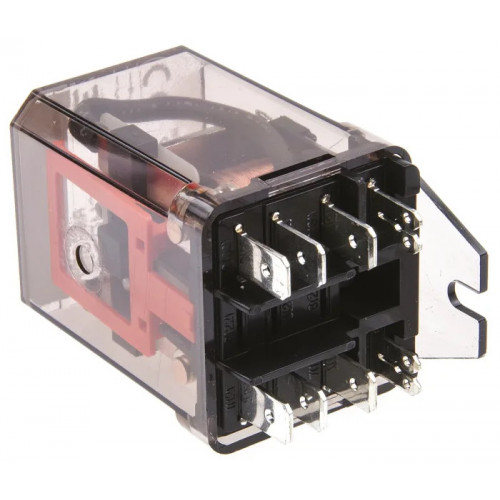

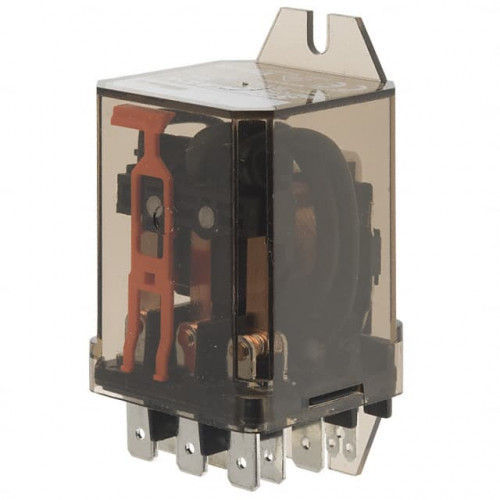

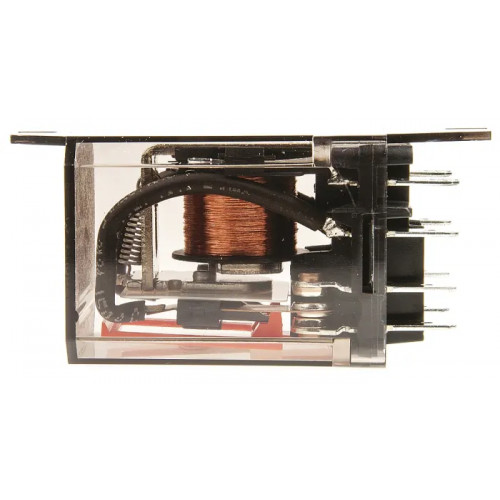

DPDT 25Amp Power Relay - RM805012 - 12V

The DPDT 25Amp Power Relay RM805012 is an electronic component for power switching. It features a 25A contact current rating and operates at 12V DC. This relay utilizes a Double Pole Double Throw (DPDT) contact form. It exhibits low coil current consumption and high sensitivity. The component maintains a compact size and is RoHS compliant. Installation is facilitated by quick connect terminals for both coil and contacts. This non-latching relay provides consistent performance. It is suitable for industrial control, automotive systems, and general electronics projects.

Specifications:

• Product Type: Power Relay
• Coil Voltage: 12 VDC

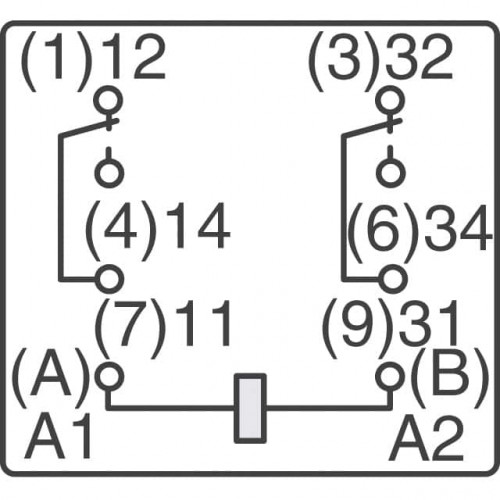

• Contact Form: 2 Form C (DPDT-NO, NC)
• Contact Current Rating: 25 A
• Switching Voltage: 400 VAC
• Coil Type: Non-Latching
• Coil Resistance: 110 Ohms
• Contact Material: Silver Cadmium Oxide (AgCdO)
• Mounting Style: Socket
• Termination: Quick Connect Terminal (Coil & Contact)
• Series: RM8

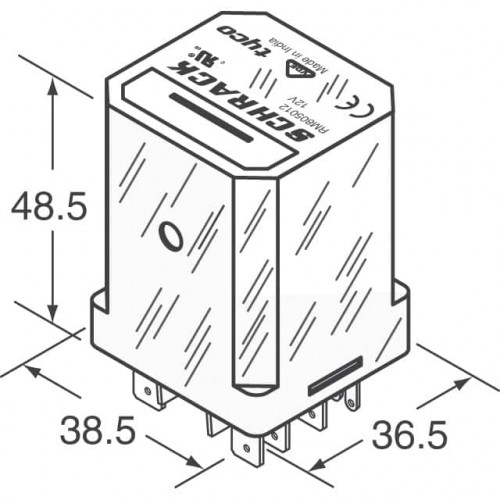

• Dimensions (L x W x H): 38.5 mm x 35.5 mm x 48.5 mm

Key features and benefits:

• Low coil current consumption
• RoHS compliant
• Compact size
• High sensitivity
• Double Pole Double Throw (DPDT) 2 Form C contacts
• 25 Amp contact current rating
• Quick connect terminals for coil and contacts
• Original construction

Applications:

• Industrial control systems
• Automotive power management
• HVAC systems
• Lighting control circuits
• Motor control applications
• Power supply switching

Frequently Asked Questions:

Q: What coil voltage is required for this relay?
A: This relay requires a 12 VDC coil voltage for operation.

Q: What is the maximum current rating for the contacts?
A: The contacts are rated for a maximum current of 25 A.

Q: What type of mounting is used for this relay?
A: This relay uses a socket mounting style.

Q: Are the terminals for coil and contacts quick connect?
A: Yes, both coil and contact terminals are quick connect type.

Q: Is this a latching or non-latching relay?
A: This is a non-latching type relay.

Package Includes:

*Image shown is a representation only.
