IR2110 High and Low Side Driver IC DIP-14 [Original - International Rectifier]

IR2110 High and Low Side Driver IC DIP-14 for MOSFET/IGBTs - International Rectifier

The IR2110 is an International Rectifier High and Low Side Driver IC. This DIP-14 package IC is designed for high-voltage, high-speed power MOSFET and IGBT driving. It features independent high-side and low-side output channels. This configuration supports half-bridge and full-bridge power electronic designs. It offers fast switching capabilities, with a typical propagation delay of 120ns. The IR2110 integrates Under-Voltage Lockout (UVLO) protection. These features support reliable operation in critical applications. It is suitable for motor control, SMPS, and UPS systems. This driver provides 2A source/sink output current. Logic inputs are compatible with TTL and CMOS levels.

Specifications:

• Manufacturer: International Rectifier
• Package Type: DIP-14 (Dual Inline Package)
• High-Side Floating Supply Voltage: Up to 600V
• Gate Drive Supply Voltage Range: 10V to 20V
• Output Current (Source/Sink): 2A / 2A
• Channel Outputs: Independent High-Side & Low-Side
• Logic Input Compatibility: TTL and CMOS levels
• Protection Features: Under-Voltage Lockout (UVLO)
• Propagation Delay (Turn-on/off): 120ns (typical)

Key features and benefits:

• High-voltage, high-speed power MOSFET and IGBT driver
• Independent high-side and low-side output channels
• Optimized for half-bridge and full-bridge configurations
• Fast switching capability with 120ns typical propagation delay
• Integrated under-voltage lockout (UVLO) protection
• Logic input compatible with standard TTL and CMOS levels
• 2A source/sink output current

Applications:

• Half-bridge and full-bridge power converter circuits
• DC-DC converters and Switched-Mode Power Supplies (SMPS)
• Motor control systems and inverters
• Uninterruptible Power Supplies (UPS) and solar inverters
• High-speed switching applications for IGBTs and MOSFETs

Frequently Asked Questions:

Q: What is the maximum high-side floating supply voltage for the IR2110?
A: The IR2110 supports a high-side floating supply voltage of up to 600V.

Q: What are the primary applications of the IR2110 driver IC?
A: The IR2110 is applied in half-bridge and full-bridge power converters, DC-DC converters, SMPS, motor control systems, inverters, and UPS systems.

Q: Does the IR2110 include integrated protection features?
A: Yes, the IR2110 integrates Under-Voltage Lockout (UVLO) protection.

Package Includes:

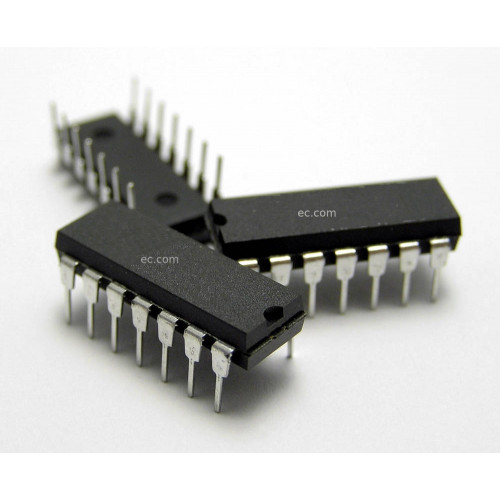

*Image shown is a representation only.
