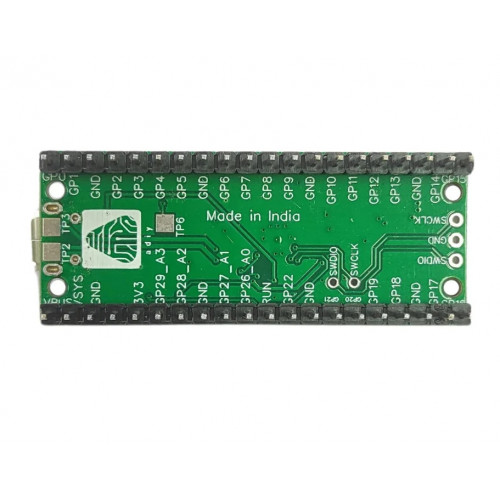

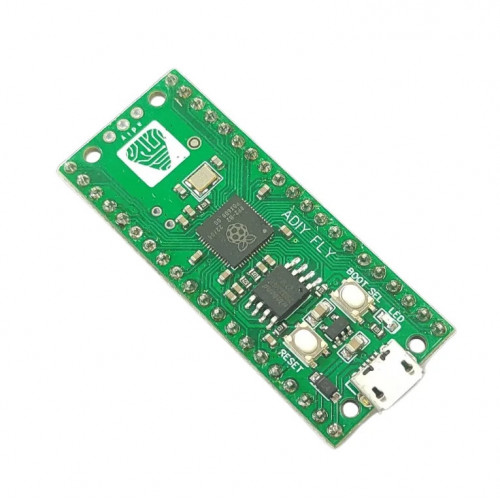

ADIY FLY Pico - RP2040 Development Board - version 1.1 (Original - High Quality)
- Product Code: TAP_R_PI_PICO
- Availability: In Stock
-
₹310.00 (+ GST)
- 10 or more quantity/sets : ₹305.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
ADIY FLY Pico (Original - High Quality)

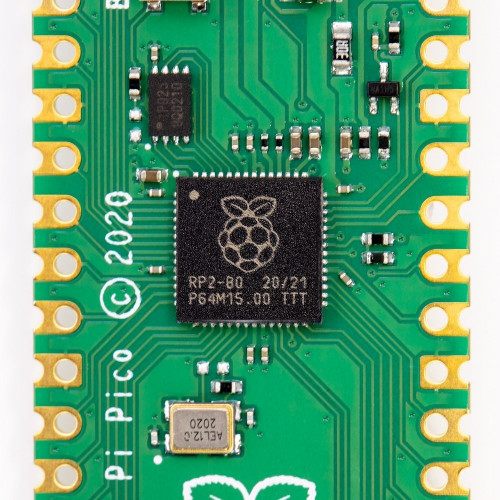

The main highlighted thing about ADIY FLY Pico is the Lowest cost and Smallest size development board from ADIY, its a replica of Raspberry Pi PICO. On the technical side, it is equipped with an RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller

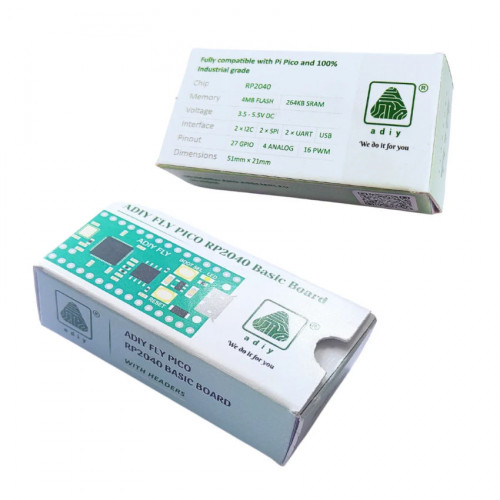

Package Includes: 1 x ADIY FYL Pico - Development Board (Original - High Quality)
Feature
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 Programmable I/O (PIO) state machines for custom peripheral support
Technical Specification
- Model: ADIY FLY PICO V1.1
- Operating Voltage (VDC): 1.8 ~ 5.5
- Processor: RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi
- Interface: 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
- RAM: 264 KB
- GPIO: 26 Pins
- Clock Speed: 133 MHz
- On Board Ports: Micro-USB 5V/2.5A DC Power Input Port
- Operating Temperature Range (°C): -20 to 85
- UPC / EAN / GTIN
- Length (mm): 51
- Width (mm): 21
- Height (mm): 4
*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
