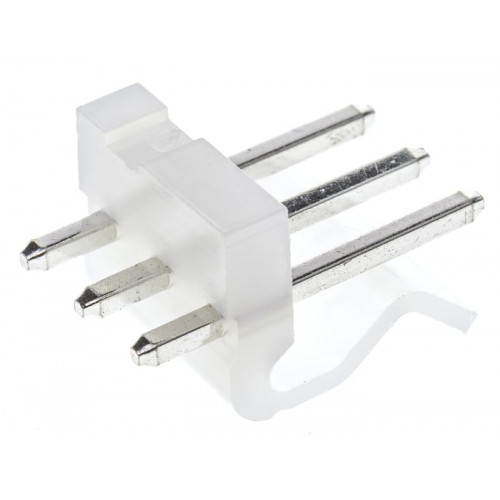

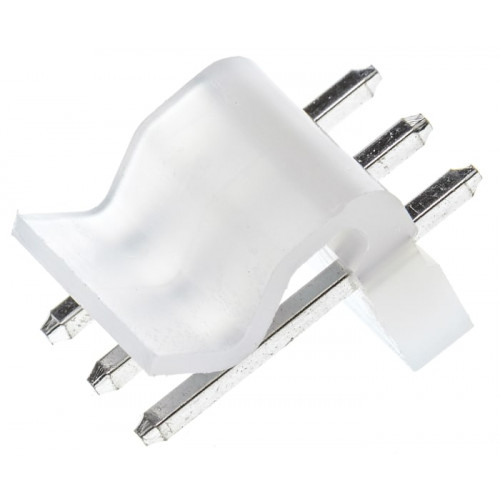

5pcs: 3 pin - Molex Cpu 3.96mm MALE Connector Straight Header[pin size:1.1sq mm] 7 Amps- KK-396

Molex KK-396 3-Pin Male Straight Header Connector, 3.96mm Pitch, 7 Amps (5 Pcs)

This package contains five Molex KK-396 3-pin male straight header connectors. Each connector features a 3.96mm pitch. They are rated for a maximum current of 7 Amps. These headers are compatible with 1.1 sq mm pin size terminals. A friction locking mechanism secures the mating connection. The straight body orientation facilitates through-hole mounting. These components support power and data transmission in electronic circuits.

Specifications:

• Model: KK-396
• Number of Pins: 3
• Housing Pitch: 3.96 mm
• Gender: Male
• Body Orientation: Straight
• Current Rating: 7 Amps
• Pin Size Compatibility: 1.1 sq mm
• Mounting Type: Through Hole
• Number of Rows: Single Row
• Material: Plastic (Nylon)
• Temperature Range: -20 to 80°C

Key features and benefits:

• 3-Pin Male Straight Header Connector (KK-396)
• 3.96mm pitch
• 7 Amps current rating
• Friction locking mechanism
• Compatible with 1.1 sq mm pin size crimped terminals
• Nylon plastic construction
• Through-hole mounting
• Operating temperature range: -20 to 80°C

Applications:

• Custom cable harnesses and assemblies
• Automotive electronic systems
• Industrial control and automation equipment
• Consumer electronic devices
• Data communication and telecommunications equipment

Frequently Asked Questions:

Q: What is the current rating for the Molex KK-396 connector?
A: The Molex KK-396 connector is rated for a maximum current of 7 Amps.

Q: What is the pin pitch of the Molex KK-396 connector?
A: The Molex KK-396 connector features a 3.96 mm pin pitch.

Q: What pin size terminals are compatible with this connector?
A: This connector is compatible with 1.1 sq mm pin size crimped terminals.

Package Includes:

*Image shown is a representation only.
