Digital Multimeter - DT830D - 1000V DC/750V AC - Max 10A

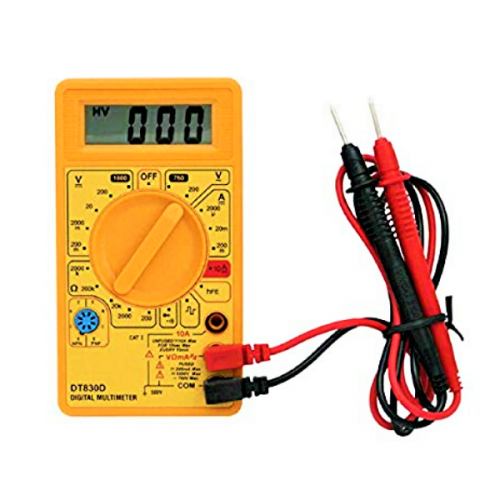

DT830D Digital Multimeter - 1000V DC / 750V AC / 10A Max

The DT830D Digital Multimeter measures electrical parameters. It features a 3.5-digit LCD for data readout. This device measures DC voltage up to 1000V and AC voltage up to 750V. DC current measurement extends up to 10A. Resistance, diode, and transistor (hFE) testing functions are integrated. Continuity testing is supported with an audible buzzer. The unit incorporates a compact form factor. A replaceable fuse provides circuit protection.

Specifications:

• Display Type: 3.5-Digit LCD
• DC Voltage Range: 200mV, 2000mV, 20V, 200V, 1000V
• AC Voltage Range: 200V, 750V
• DC Current Range: 200µA, 2000µA, 20mA, 200mA, 10A
• Resistance Range: 200Ω, 2000Ω, 20KΩ, 200KΩ, 2000KΩ
• Diode Test: Yes
• Transistor hFE Test: Yes
• Continuity Test: Yes (with Buzzer)
• Fuse Protection: Replaceable Fuse

Key features and benefits:

• 3.5-digit LCD display
• Measures DC/AC Voltage, DC Current, Resistance
• Diode and transistor (hFE) testing
• Continuity test with audible buzzer
• Rotary selector switch
• Replaceable fuse protection
• Removable test leads supplied

Applications:

• Circuit and component testing
• Electrical fault diagnosis
• Vehicle electrical system troubleshooting
• Battery and power supply testing
• Appliance testing

Frequently Asked Questions:

Q: What fuse type is required for the DT830D multimeter?
A: The DT830D multimeter uses a replaceable fuse. Ratings are typically printed on the fuse or inside the battery compartment.

Q: Are the test leads for the DT830D detachable?
A: Yes, the included test leads are removable and can be replaced.

Q: Does the DT830D multimeter measure AC current?
A: No, the DT830D model measures DC current up to 10A. It does not include an AC current measurement function.

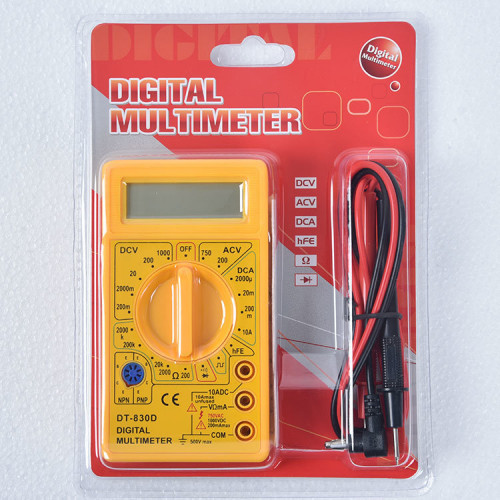

Package Includes:

*Image shown is a representation only.
