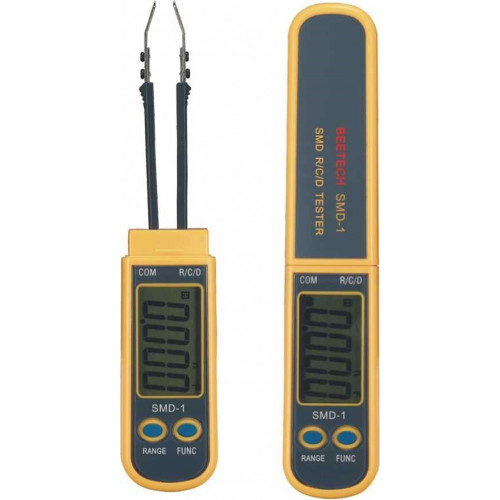

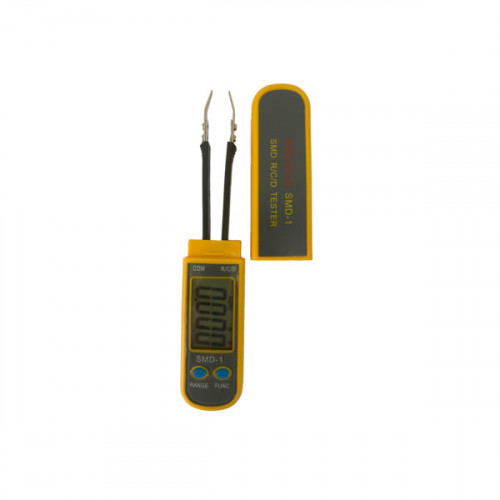

Beetech SMD-1 Digital Smart SMD Tester 40mΩ, 10mF (Ref No. : SMD 1) - [Original]

Beetech SMD-1 Digital Smart SMD Tester 40mΩ, 10mF (Ref No. : SMD 1)

The Beetech SMD-1 Digital Smart SMD Tester integrates multimeter functionality with tweezer precision for surface-mount device circuit troubleshooting. This tool facilitates one-handed operation for testing resistors, capacitors, and diodes directly on a PCB. It is designed for electronics professionals and hobbyists. The compact design eliminates the requirement for external probes and wires. The device provides rapid and accurate measurements. Features include auto-ranging and a 3999-count display. The SMD-1 supports identification and diagnosis of component issues. It is suitable for work with miniaturized electronics.

Specifications:

• Model No: SMD 1
• Type of Product: SMD Tester
• Resistance Accuracy: ±2%±5
• Display Count: 3999 (3 2/3 Digit)
• Capacitance Accuracy: ±5%±5
• Weight: 68 g (approx)
• Resistance Range: 400Ω - 40MΩ
• Resistance Resolution: 4mΩ - 40MΩ
• Capacitance Range: 10nF - 10mF
• Dimension: 175x34x18.5 mm
• Capacitance Resolution: 1000uF - 10mF
• Power Supply: CR2032 (3V) X1

Key features and benefits:

• 3999-count digital display for readings
• Automatic ranging for resistance and capacitance measurements
• Auto power-off function to conserve battery life
• Data hold feature for reading capture
• Low battery indicator for workflow management
• Automatic component scanning for identification
• Integrated continuity buzzer for circuit checks (<30Ω)

Applications:

• Troubleshooting and repair of SMD circuit boards
• Component testing during electronics prototyping
• Quality control and inspection of electronic assemblies
• Educational purposes for learning about SMD components
• Field service and on-site diagnostics of electronic devices

Frequently Asked Questions:

Q: What types of components can the Beetech SMD-1 test?
A: The Beetech SMD-1 is designed to test resistors, capacitors, and diodes directly on a PCB.

Q: What is the display count of the Beetech SMD-1?
A: The device features a 3999-count (3 2/3 Digit) digital display.

Q: What is the power source for the Beetech SMD-1?
A: The Beetech SMD-1 is powered by one CR2032 (3V) battery.

Package Includes:

*Image shown is a representation only.
