D15N10 (15N10) - 100V, 15A N-Channel power MOSFET [SMD]

D15N10 (15N10) N-Channel Power MOSFET - 100V, 15A SMD, TO-252 (DPAK)

The D15N10 (15N10) is an N-Channel Power MOSFET. It features a 100V Drain-Source Voltage and 15A Continuous Drain Current. This surface-mount device (SMD) is supplied in a TO-252 package. Advanced Trench Technology is integrated for performance. It exhibits an on-resistance of < 110mΩ at VGS=10V. The component has a super low gate charge. It is suitable for power management and DC/DC converter circuits. The D15N10 is RoHS compliant. Its design supports fast switching operations. The device is for low voltage applications.

Specifications:

• Type: N-Channel Power MOSFET
• Drain-Source Voltage (VDS): 100V
• Continuous Drain Current (ID): 15A
• On-Resistance (RDS(ON)): < 110mΩ @ VGS=10V
• Gate-Source Voltage (VGS): ±20V
• Package Type: TO-252 (DPAK)
• Technology: Advanced Trench
• Mounting Type: Surface Mount Device (SMD)
• Gate Charge (Qg): Super Low
• RoHS Compliance: Yes

Key features and benefits:

• Low On-Resistance (RDS(ON) < 110mΩ @ VGS=10V)
• Advanced Trench Technology for high cell density
• Super Low Gate Charge
• Improved CdV/dt effect decline
• Lead-free and RoHS compliant
• Eco-friendly green molding compound

Applications:

• DC/DC Converters
• Power Management Systems
• Motor Control Circuits
• Switching Power Supplies
• Battery Management Systems
• LED Lighting Drivers

Frequently Asked Questions:

Q: What is the package type of the D15N10 MOSFET?
A: The D15N10 (15N10) MOSFET is supplied in a TO-252 (DPAK) surface mount package.

Q: Can the D15N10 (15N10) be used in 12V DC/DC converter circuits?
A: Yes, the D15N10 (15N10) has a Drain-Source Voltage (VDS) of 100V and is suitable for low voltage applications, including DC/DC converter circuits.

Q: What is the on-resistance (RDS(ON)) of this MOSFET?
A: The D15N10 (15N10) features an on-resistance (RDS(ON)) of < 110mΩ at VGS=10V.

Q: Is the D15N10 (15N10) suitable for surface mount assembly?
A: Yes, the D15N10 (15N10) is a Surface Mount Device (SMD) in a TO-252 package, designed for surface mount designs.

Package Includes:

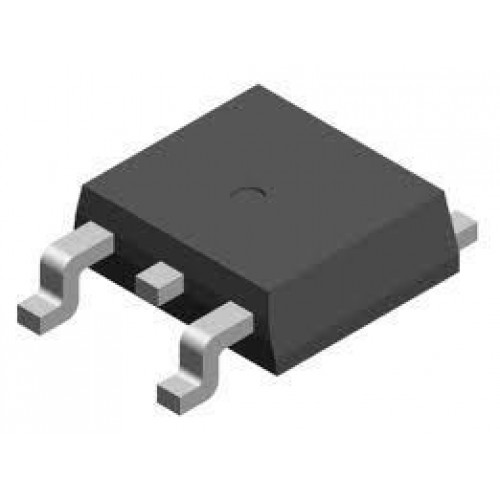

*Image shown is a representation only.
