7N60C (7N60 : HGT1S7N60ADS) - 7A 600V N-Channel, MOSFET [SMD] - TO-263

7N60C 7A 600V N-Channel MOSFET (TO-263 SMD)

The 7N60C (HGT1S7N60ADS) is a high-performance 7A 600V N-Channel Power MOSFET, ideal for advanced electronic designs. This SMD component, housed in a robust TO-263 package, delivers exceptional characteristics. It features a remarkably fast switching time, ultra-low gate charge, and minimal on-state resistance. Engineered for high reliability, it boasts superior rugged avalanche characteristics and improved dv/dt capability. The 7N60C is perfectly suited for demanding high-speed switching applications. It provides efficient and stable operation in switching power supplies and various power adaptors. This RoHS compliant transistor ensures both environmental responsibility and top-tier performance. It's a versatile solution for modern power management circuits.

Specifications:

• Product Type: N-Channel Power MOSFET
• Part Number: 7N60C (HGT1S7N60ADS)
• Drain Current (ID): 7A
• Drain-Source Voltage (VDS): 600V
• On-State Resistance (RDS(ON)): 1.0Ω (Max) @ VGS = 10V
• Gate Charge (Qg): Typical 29 nC
• Reverse Transfer Capacitance (CRSS): Typical 16pF
• Package Type: TO-263 (SMD)
• Compatibility: Equivalent/Compatible for 7N65

Key features and benefits:

• Low On-State Resistance: RDS(ON) = 1.0Ω (Max) @ VGS = 10V
• Ultra-Low Gate Charge (Typical 29 nC)
• Low Reverse Transfer Capacitance (CRSS = typical 16pF)
• Fast Switching Capability for High-Speed Applications
• High Ruggedness with Avalanche Energy Tested
• Improved dv/dt Capability
• RoHS Compliant
• TO-263 SMD Package

Applications:

• High-Speed Switching Power Supplies
• Power Adaptors and Chargers
• DC-DC Converters
• Motor Control Circuits
• Lighting Applications (e.g., LED drivers)

Package Includes:

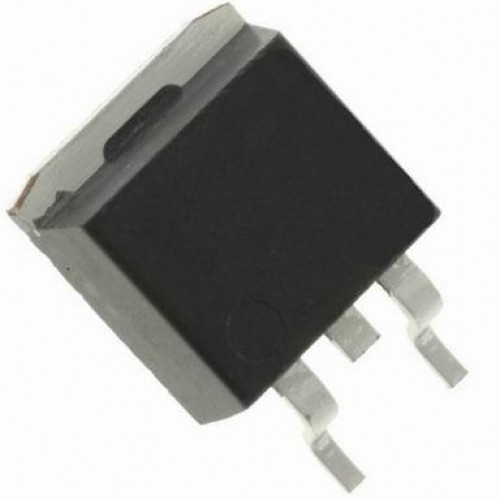

*Image shown is a representation only.
