SX1308 DC-DC Step Up Adjustable Power Supply 28V 2A 1.2Mhz Power Booster Module

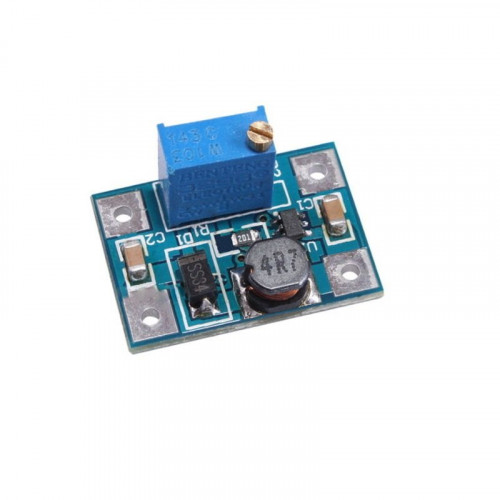

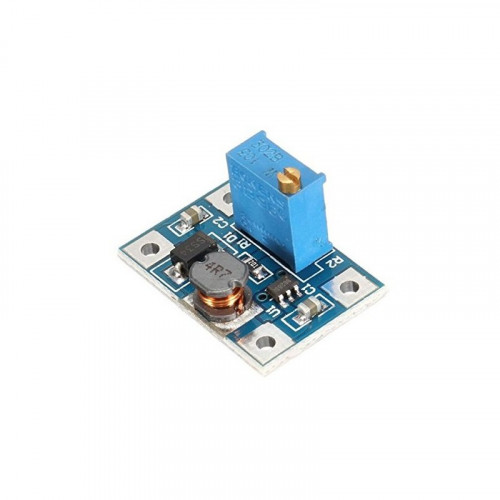

SX1308 DC-DC Step Up Adjustable Power Supply Module 28V 2A

Discover the versatility of the SX1308 DC-DC Step Up Adjustable Power Supply Module, engineered for efficient voltage boosting. This compact power booster allows you to convert lower DC input voltages into higher, stable outputs. Featuring the high-performance SX1308 chip, it can deliver an adjustable output of up to 28V and a maximum current of 2A. Its impressive 1.2MHz switching frequency ensures stable operation, while achieving a high conversion efficiency of up to 95%. The module integrates a low RDS internal resistance 100mΩ MOSFET, enabling robust current output. Easily adjust the output voltage using the onboard 10k potentiometer to suit your specific project needs. Ideal for a wide range of electronic applications, this module provides a reliable and flexible power solution. Its small footprint makes it perfect for integration into space-constrained designs. Power your innovations with this high-efficiency step-up converter.

Specifications:

• Chipset: SX1308
• Input Voltage: DC 2V - 24V
• Output Voltage: DC 2V - 28V (Adjustable)
• Max Output Current: 2A
• Switching Frequency: 1.2MHz
• Conversion Efficiency: Up to 95%
• PCB Dimensions (L x W): 24 x 16 mm
• Module Height: 14 mm

Key features and benefits:

• High switching frequency of 1.2MHz for stable operation
• Exceptional power conversion efficiency, up to 95%
• Adjustable output voltage via a 10k onboard potentiometer
• Compact PCB size (24 x 16mm) for space-saving integration
• Integrated 100mΩ MOSFET supports up to 2A output current
• Wide input voltage range from DC 2V to 24V
• Output voltage adjustable from DC 2V to 28V

Applications:

• DIY adjustable output power supplies for various projects
• Mobile power solutions and battery-powered devices
• Powering digital products and 3G network equipment
• Custom voltage regulation for electronic circuits
• Vehicle power supply applications (e.g., 12V to 28V conversion)

Package Includes:

*Image shown is a representation only.
