100K Potentiometer - 6pin (Linear) - 16mm volume Dual Rotary

100K Dual Linear Potentiometer - 6-Pin, 16mm Rotary Volume Control

The 100K Dual Linear Potentiometer is a 6-pin, 16mm component. Its dual-gang design enables simultaneous adjustment of two independent circuits. The linear taper provides consistent resistance change across its 300° rotation. This component is breadboard compatible, facilitating prototyping and educational applications. A D-type shaft ensures secure knob attachment and stable operation. It is suitable for integration into audio, lighting, or motor control systems. This variable resistor is utilized by hobbyists and professional engineers.

Specifications:

• Resistance: 100K Ohms (+/- 20%)
• Rated Power: 0.5W
• Sliding Noise: < 47mV
• Total Rotation Angle: 300° +/- 5°
• Shaft Type: D-Type
• Shaft Diameter: 4mm
• Shaft Length: 8mm
• Breadboard Compatibility: Yes
• Potentiometer Type: Dual Rotary
• Taper: Linear
• Pin Count: 6-pin
• Body Size: 16mm

Key features and benefits:

• 100K Ohm resistance with +/- 20% tolerance.
• Dual-gang design for simultaneous control of two independent circuits.
• Linear taper for consistent resistance change across 300° rotation.
• 16mm body size.
• 6-pin configuration.
• D-Type shaft (4mm diameter, 8mm length).
• Breadboard compatible.
• Rated power of 0.5W.

Applications:

• Audio volume and tone control in amplifiers and mixers.
• Lighting dimmer circuits and LED intensity adjustment.
• Motor speed control in robotics and automation.
• Sensor calibration and signal conditioning.
• Integration into DIY electronics projects and prototyping.

Frequently Asked Questions:

Q: What is a dual linear potentiometer?
A: A dual linear potentiometer features two independent resistive elements (gangs) operated by a single shaft. The linear taper ensures a resistance change proportional to the shaft's rotation angle.

Q: What does '100K' indicate for this potentiometer?
A: The '100K' designation indicates a nominal maximum resistance of 100,000 Ohms (100 Kilo-Ohms) for each resistive element.

Q: What is the function of the 6-pin configuration?
A: The 6-pin configuration provides three terminals for each of the two independent potentiometer gangs, allowing for connection to two separate circuits.

Package Includes:

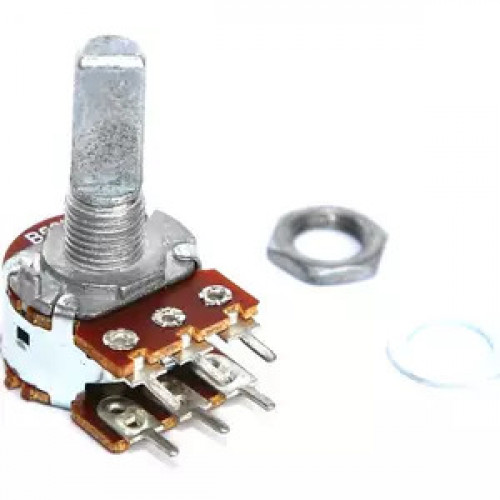

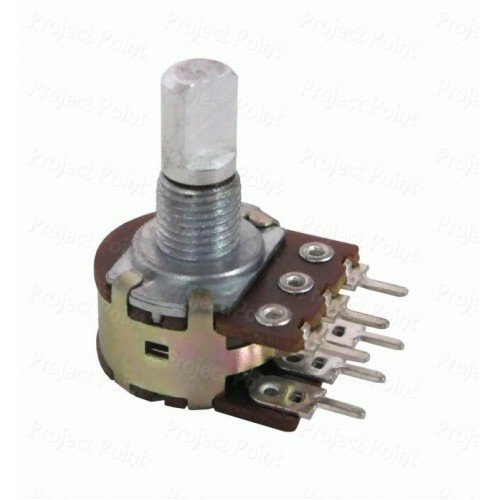

*Image shown is a representation only.
