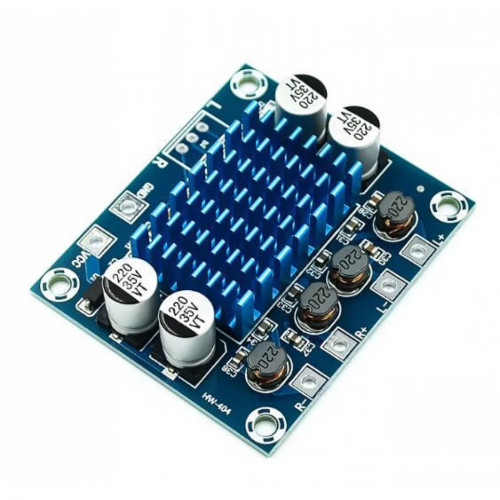

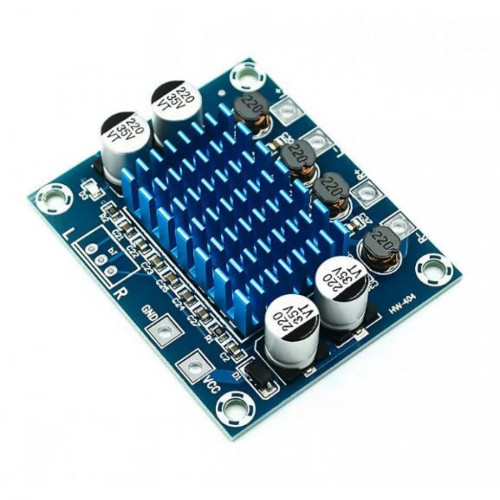

High Power TPA3110 - 60W (30W+30W) Dual Channel HW-404 / XH-A232 Digital Power Amplifier Board

High Power TPA3110 - 60W (30W+30W) Dual Channel HW-404 / XH-A232 Digital Power Amplifier Board

HD Digital Audio Power Amplifier Board is a newly designed Dual channel 30W digital audio amplifier board with fine quality is practical to install and use also has good performance. It features a high-efficiency class D audio power amplifier with the latest and original TPA3110 core technology the BTL bridge circuit is more efficient than before.

This product uses the double power supply transformer with a dynamic power supply range from 12V to 24V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.

Note:

This kit is not for the new electronics hobbyist. Proper knowledge about the subject is required to understand and make the complete project. We do not hold any responsibility for any issues or help either due to negligence, ignorance or lack of proper knowledge about the subject.

Feature

• Strong TPA3110 chip is a digital power amplifier chip, with low idle loss characteristics, which makes it work well and quickly.
• Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
• It can be used for car vehicle computer speaker, family audio and video, and empty square.
• This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.

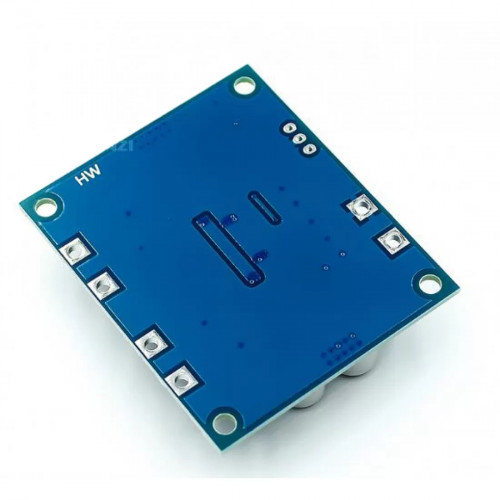

• There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of a short circuit.

Specification / Feature

• Model number: XR-A232 / HW-404 / XH-A232

• Power amplifier type: Class D

• Voltage range: DC8-26V

• Current: 3A - 5A

• No. of Channels : 2 (Stereo)

• Maximum power: 30w+30w

• Output impedance: 4-8 ohms

• Signal-to-noise ratio: 100db

• Net weight: 21 gram

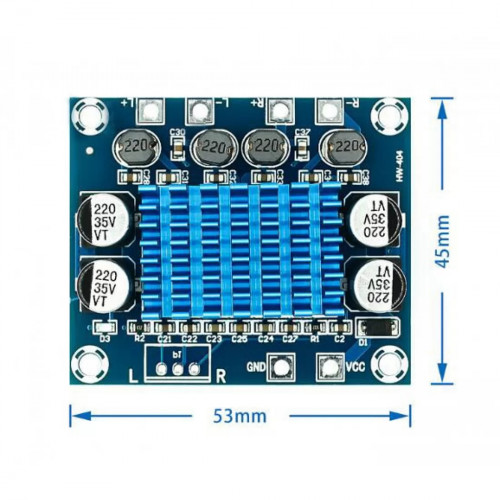

• Dimensions: 53*45*14MM

• Connection: Connect 2 speaker


Package Includes: 1 x High Power TPA3110 - 60W (30W+30W) Dual Channel HW-404 / XH-A232 Digital Power Amplifier Board

* Image is only for representations.
