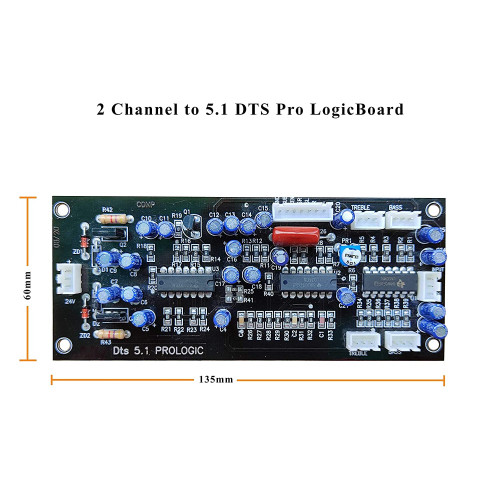

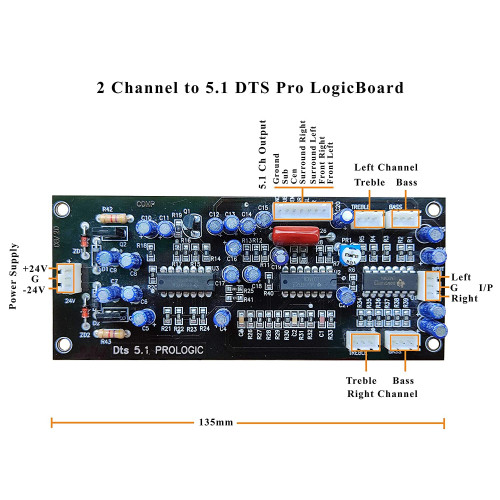

Audio DTS 5.1 Prologic Board : Stereo Input - 5.1 Output with Bass Treble Connecting wires included
OverViewThis is a high quality prologic board for DTS 5.1, A surround sound decoder which converts stereo input to 5.1 Channel (front left, front right, center, rear left, rear right + ...
This is a high quality prologic board for DTS 5.1, A surround sound decoder which converts stereo input to 5.1 Channel (front left, front right, center, rear left, rear right + sub). Its a pre-amp board with hi-fi audio output. Connect with a good amplifier to get best result for individual channel crystal clear audio.
This kit is not for the electronics hobbyist. Proper knowledge about the subject is required to understand and make the complete project. We do not hold any responsibility for any issues or help either due to negligence, ignorance or lack of proper knowledge about the subject.
This unit is used to feed an amplifier, from the amplifier you can drive the speaker. Do not connect speakers directly to this unit.
Specification / Feature
- Stereo Input to 5.1 DTS Audio Output
- SMD board for limited audio loss
- High quality Audio output
- Input voltage 24-0 -24 V
- Input current 1.5 to 3 amp
- Channel: 5 + 1 Sub

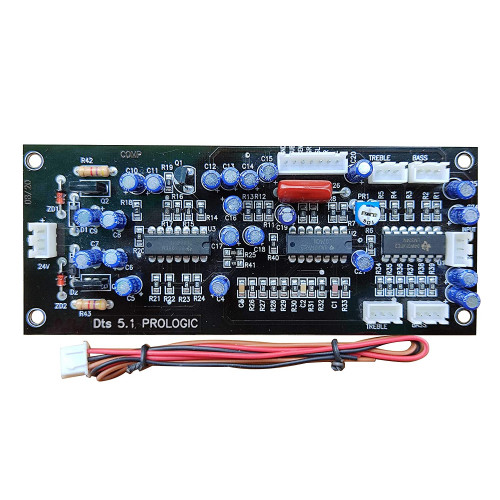

1 x 5.1 DTS Prologic Board

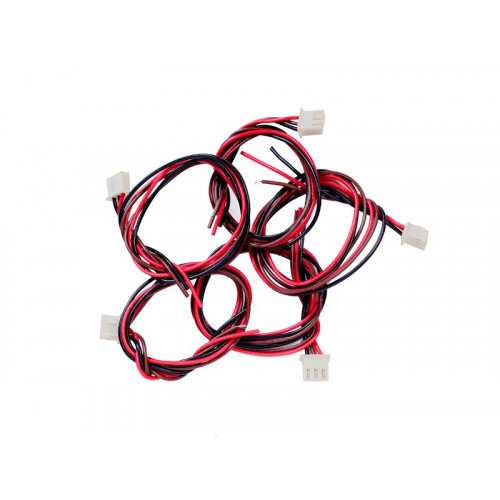

6 x 3pin Wires
1 x 7pin Wire
* Image is only for representations.
