TL064 -SMD - Low power JFET quad operational amplifier - SOIC-14

TL064 SMD Low Power JFET Quad Operational Amplifier - SOIC-14

The TL064 SMD is a JFET-input quad operational amplifier. It is supplied in a compact SOIC-14 surface-mount package. This integrated circuit incorporates four independent op-amps. It features high input impedance and low power consumption. The TL064 operates across a wide supply voltage range. It is suitable for applications requiring multiple channels and energy efficiency. The JFET input technology supports precise signal processing. This component balances power savings with robust functionality across various electronic designs.

Specifications:

• Supply Voltage: ±3V to ±18V (dual) or 6V to 36V (single)
• Quiescent Current: ~200 µA per amplifier
• Gain Bandwidth Product: ~1 MHz
• Slew Rate: ~3.5 V/µs
• Input Offset Voltage: Typically 3 mV
• Input Bias Current: ~30 pA (typical)
• Package: SOIC-14 (Surface-Mount)
• Operating Temperature: 0°C to 70°C (commercial grade)

Key features and benefits:

• Quad Op-Amp Design: Four independent operational amplifiers.
• Ultra-Low Power Consumption: ~200 µA quiescent current per amplifier.
• JFET Input Technology: High input impedance and low input bias current.
• Compact SOIC-14 Package: Surface-mount design for PCB integration.
• Wide Supply Voltage Range: Operates from ±3V to ±18V (dual) or 6V to 36V (single supply).

Applications:

• Battery-Powered Devices: Portable electronics, sensors, meters, and wearables.
• Audio Preamplifiers: Audio signal conditioning.
• Active Filters: Low-frequency filter design in signal processing circuits.
• Sensor Interfaces: Amplification of weak signals from transducers or sensors.
• Industrial Controls: Low-power automation and monitoring systems.

Frequently Asked Questions:

Q: What is the supply voltage range for the TL064 SMD?
A: The TL064 operates with a dual supply from ±3V to ±18V or a single supply from 6V to 36V.

Q: Can the TL064 SMD replace a through-hole TL064?
A: The TL064 SMD is in a SOIC-14 surface-mount package, which is not directly pin-compatible with through-hole DIP packages. A PCB redesign is required for replacement.

Q: How many operational amplifiers are integrated into the TL064?
A: The TL064 integrates four independent operational amplifiers.

Q: What is the quiescent current consumption of the TL064 per amplifier?
A: The quiescent current is approximately 200 µA per amplifier.

Q: What is the package type of the TL064 SMD?
A: The TL064 SMD is provided in a SOIC-14 surface-mount package.

Package Includes:

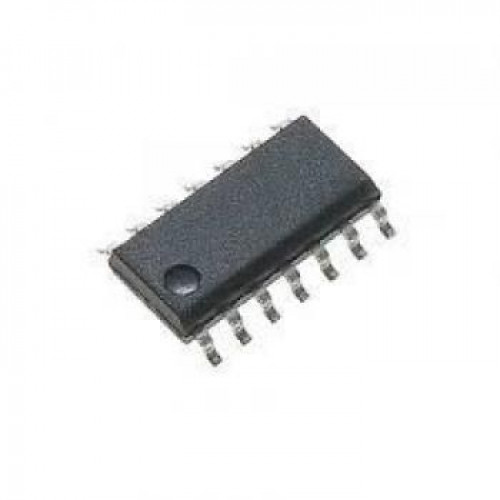

*Image shown is a representation only.
