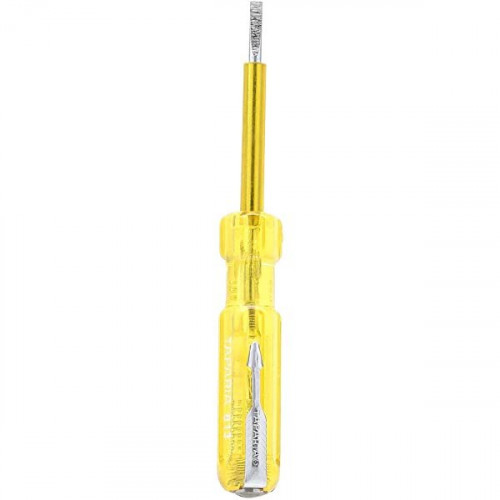

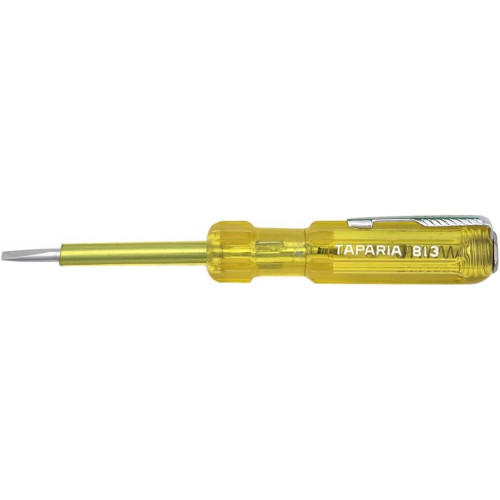

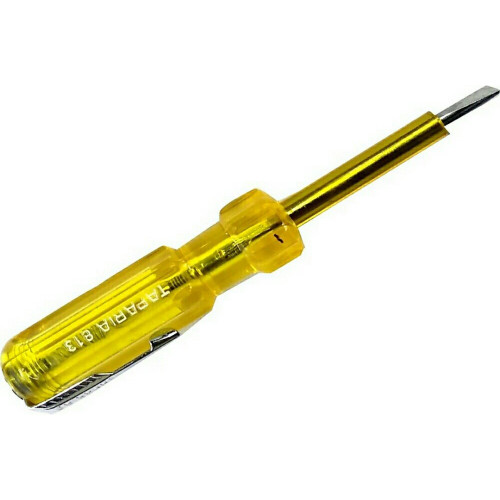

Taparia 813 / CIW Line Tester Yellow Handle Screw Driver with Neon Bulb - 130mm Length [Original - HQ]

Taparia 813 / CIW Line Tester Screwdriver with Neon Bulb, 130mm

The Taparia 813 / CIW Line Tester Screwdriver combines screwdriver utility with voltage testing capabilities. It features a fully insulated blade for shockproof operation. A neon lamp indicates live electrical lines. The blade is crafted from high-grade silicon-manganese steel. The yellow handle is made from non-flammable C.A. plastics. This 130mm tool detects voltages from 90V DC and 60V AC up to 500V AC. The precision-ground tip ensures secure engagement in screw slots. Bright Nickel Chrome plating protects the blade.

Specifications:

• Product Type: Line Tester Screwdriver
• Blade Length: 130 mm
• Standard Grade: IS 5579 - 1985
• Brand/Make: Taparia / CIW (depending on availability)
• Blade Material: High-grade silicon-manganese steel
• Handle Material: High-grade C.A. Plastics (Cellulose Acetate)
• Voltage Detection Range: Min 90V DC / 60V AC to Max 500V AC
• Insulation Resistance: 1 Mega Ohm
• Tip Angle: 50 degrees
• Blade Finish: Bright Nickel Chrome plating

Key features and benefits:

• Fully insulated blade for shockproof operation.
• Neon bulb for live electrical line identification.
• Yellow handle constructed from non-flammable C.A. plastics.
• High-grade silicon-manganese steel blade.
• Precision-ground tip (50-degree angle) for screw slot engagement.
• Bright Nickel Chrome plating on blade for corrosion resistance.
• 130mm length with pocket clip.

Applications:

• Live electrical line and circuit verification.
• AC and DC voltage testing in wiring and appliances.
• Faulty electrical connection and power source identification.
• Basic electrical repair and installation tasks.
• Electrical safety checks in home improvement.
• Use by electricians, technicians, and hobbyists.

Frequently Asked Questions:

Q: What is the voltage detection range for this line tester?
A: It detects voltages from 90V DC / 60V AC up to 500V AC.

Q: Is the blade fully insulated for user safety?
A: Yes, the blade is fully insulated to ensure shockproof operation.

Q: What material is used for the handle construction?
A: The handle is made from high-grade, non-flammable C.A. Plastics (Cellulose Acetate).

Q: Can this tool be used for both AC and DC circuits?
A: Yes, it detects both AC (from 60V) and DC (from 90V) voltages.

Package Includes:

*Image shown is a representation only.
