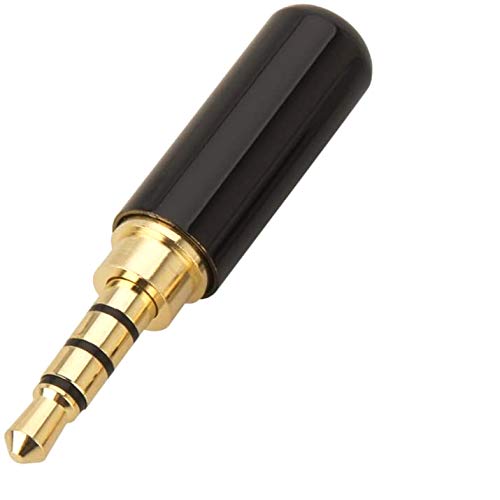

Stereo 3.5mm 4 Pole Metal Earphone Soldering Jack Audio Male Plug Headphone

Stereo 3.5mm 4 Pole Metal Soldering Audio Male Plug

This component is a Stereo 3.5mm 4 Pole Metal Soldering Audio Male Plug. It is intended for audio applications requiring a 4-contact connection. The construction includes a metal body. Gold-plated pins are incorporated for signal conductivity. Its 4-pole configuration supports stereo audio and additional functions. An integrated heat sink assists in solder joint formation. This plug is compatible with standard 3.5mm audio ports. It is suitable for headphone repair and custom cable assemblies.

Specifications:

• Plug Size: 3.5mm

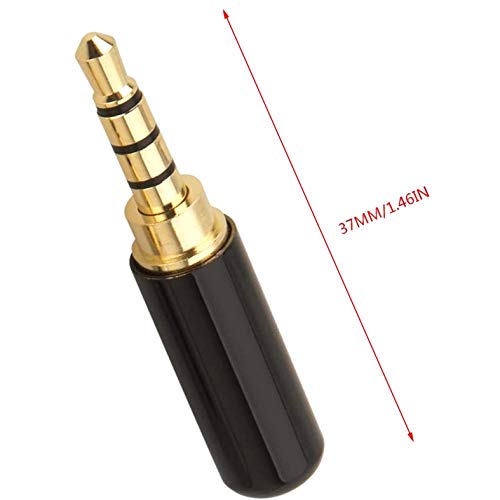

• Length: 37mm
• Gender: Male
• Poles/Contacts: 4

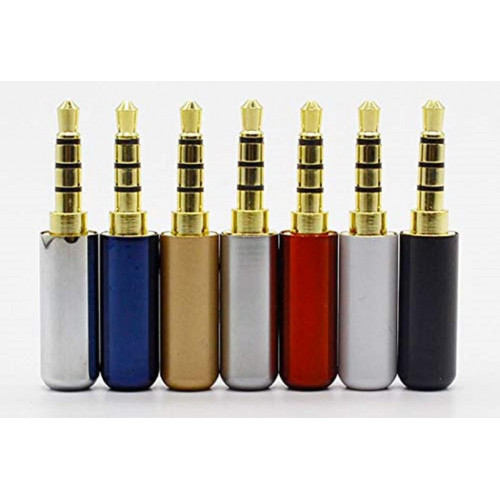

• Color: Based on availability
• Material: Copper & Alloy

Key features and benefits:

• Stereo audio male plug
• Metal body construction
• Gold-plated pins for signal conductivity
• 4-pole/4-contact design

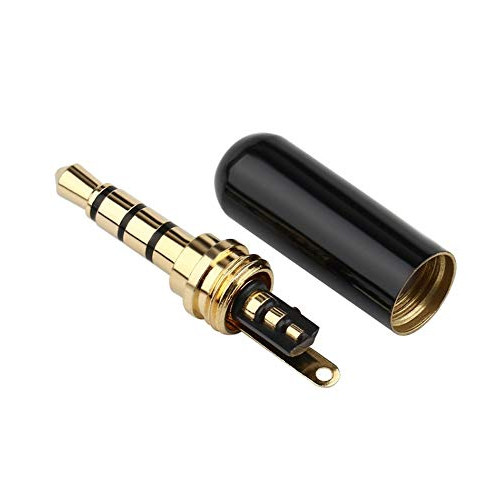

• Integrated heat sink for solder joint stability

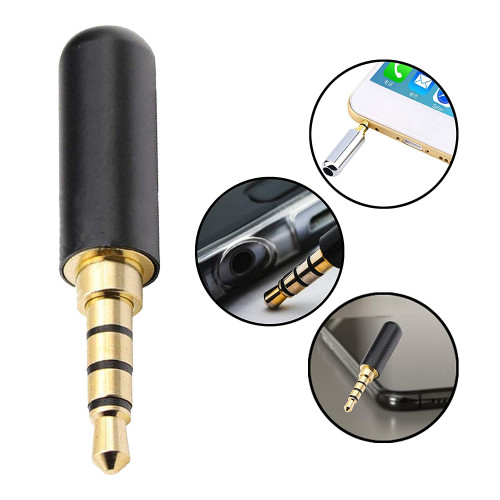

• Compatibility with standard 3.5mm audio jacks

Applications:

• Repairing damaged headphone and audio cables
• Custom building audio cables and adapters

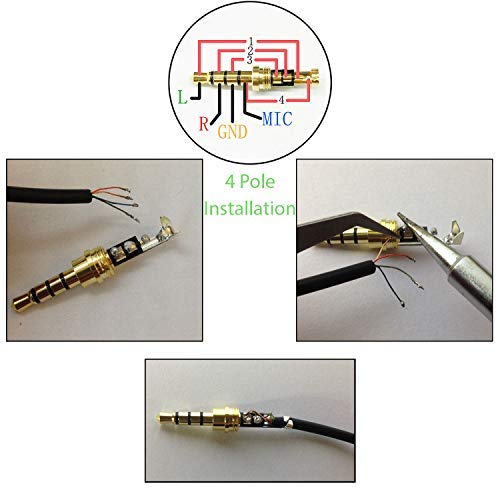

• Headset projects requiring microphone functionality
• Replacing worn-out audio plugs on various devices
• Professional audio equipment maintenance

Frequently Asked Questions:

Q: Is this plug compatible with all 3.5mm audio jacks?
A: This plug is compatible with standard 3.5mm audio jacks that accept a 4-pole male connector.

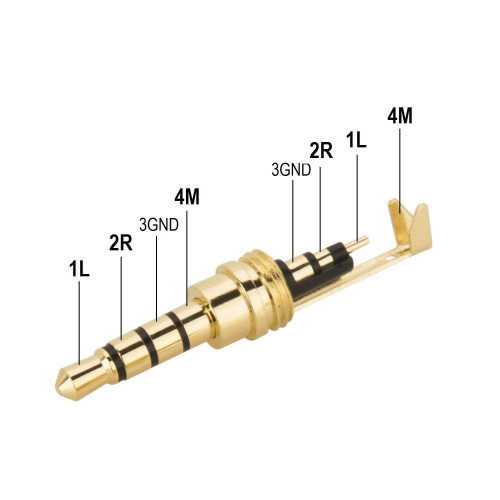

Q: What functions does the 4-pole design support?
A: The 4-pole design supports stereo audio, microphone input, or control functions, depending on the connected device's wiring.

Q: What is the recommended soldering temperature for this plug?
A: Specific soldering temperature is not provided. The integrated heat sink aids in stable solder joint formation.

Q: Can this plug be used for mono audio connections?
A: While designed for 4-pole stereo and auxiliary functions, it can be wired for mono audio if only two or three contacts are utilized, though it is not its primary configuration.

Package Includes:
