5pin 3.5mm Stereo Socket pcb mount switch with nut

5pin 3.5mm Stereo Socket PCB Mount Switch with Nut

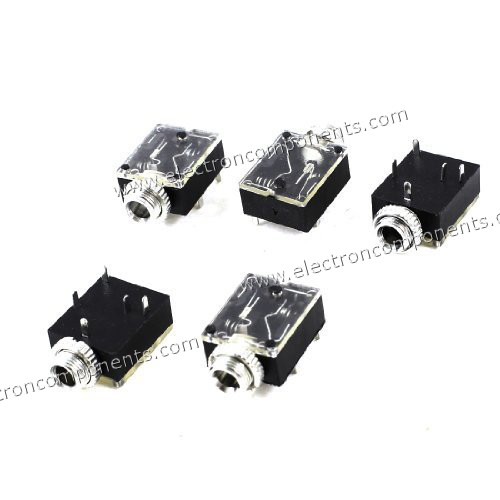

This 5pin 3.5mm Stereo Audio Jack Socket features an integrated switch and PCB mount nut. It provides audio connections for electronic projects. The component has a 5-terminal construction for stereo audio transmission. An integrated switch supports various circuit designs. A securing nut is included for chassis or panel mounting. Its compact size accommodates space-constrained applications. This socket supports audio signal termination.

Specifications:

• Connector Type: 3.5mm Female Stereo Socket (TRS)
• Mounting Type: PCB Mount
• Number of Pins: 5 Terminals
• Material: Metal, Plastic
• Dimensions (L x W x H): 19 x 12 x 9mm
• Color: Black
• Securing Nut: Included

Key features and benefits:

• 5-pin configuration for stereo audio and integrated switch
• Standard 3.5mm female TRS socket
• PCB (Printed Circuit Board) mounting
• Securing nut for chassis or panel installation
• Metal and plastic construction
• Dimensions: 19 x 12 x 9mm
• Supports audio signal termination

Applications:

• DIY audio equipment and custom builds
• Repair and replacement of audio jacks
• Prototyping and electronic circuit development
• Integration into small appliances and portable devices
• Educational electronics projects

Frequently Asked Questions:

Q: What is the pin configuration for this 5-pin stereo socket with switch?
A: The 5 pins typically include Left, Right, Ground, and two switch terminals. Refer to the product datasheet for the exact pinout and switch operation.

Q: Can this socket be used with a mono (TS) plug?
A: This is a stereo (TRS) socket. A mono (TS) plug will physically fit but will short the ring terminal to ground, which may affect audio signal or switch functionality.

Q: What is the maximum panel thickness for mounting with the included nut?
A: The maximum panel thickness depends on the length of the threaded portion of the socket. Measure the threaded section to determine compatibility with your panel.

Package Includes:

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
