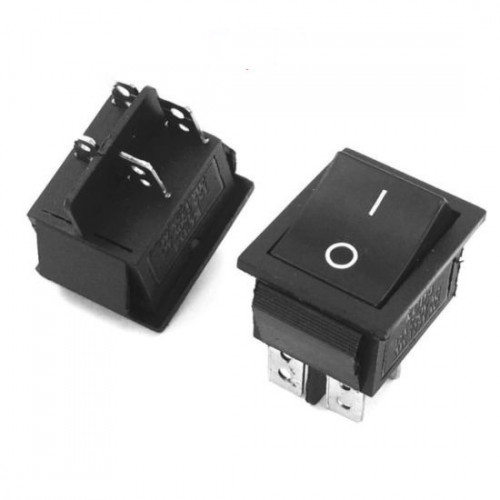

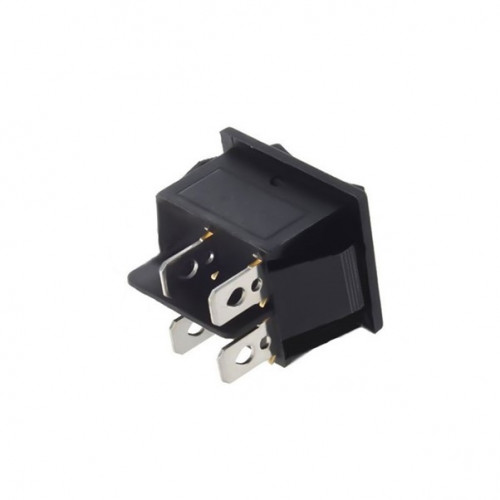

DPST on-off Rocker Switch 16A - Panel Mount [high Quality] (4pin)

DPST On-Off Rocker Switch 16A - Panel Mount [high Quality] (4pin)

This DPST On-Off Rocker Switch provides power control for electrical circuits. It is rated for 16A at 250V AC. The Double Pole, Single Throw (DPST) configuration enables simultaneous control of two independent circuits. A 4-pin design facilitates wiring. The switch is designed for panel mount installation. It offers an ON-OFF switching mode with tactile feedback. This component meets industrial quality standards.

Specifications:

• Current Rating: Max 16A at 250V AC
• Switching Mode: ON-OFF
• Contact Configuration: DPST (Double Pole, Single Throw)
• Mounting Type: Panel Mount
• Panel Cut-Out (LxWxH): 25.2 x 21 x 16 mm
• Operating Temperature: -20 to +85°C
• Actuator Colour: Black
• Switching Life: 50,000-100,000 Cycles
• Overall Length: 30 mm
• Overall Width: 25 mm
• Overall Height: 26.5 mm
• Quality Standard: Industrial Standard High Quality (Made in India)

Key features and benefits:

• Durable construction for long-term performance.
• DPST configuration for simultaneous dual circuit control.
• 16A at 250V AC current rating.
• 4-pin design for two independent circuits.
• Panel mount installation.
• ON-OFF switching mode with tactile feedback.
• Operational life of 50,000-100,000 cycles.

Applications:

• General power control for electronic circuits.
• Robotics and automation projects.
• DIY electronics and hobbyist applications.
• Industrial equipment and machinery.
• Appliance power switches and control panels.

Frequently Asked Questions:

Q: What panel cut-out dimensions are required for this switch?
A: The required panel cut-out dimensions are 25.2 x 21 x 16 mm (LxWxH).

Q: How many circuits can this DPST switch control?
A: This DPST switch controls two independent circuits simultaneously.

Q: What is the maximum current and voltage rating for this switch?
A: The maximum current rating is 16A at 250V AC.

Q: What is the function of the 4-pin configuration?
A: The 4-pin configuration facilitates wiring for two independent circuits.

Package Includes:

*Image shown is a representation only.
