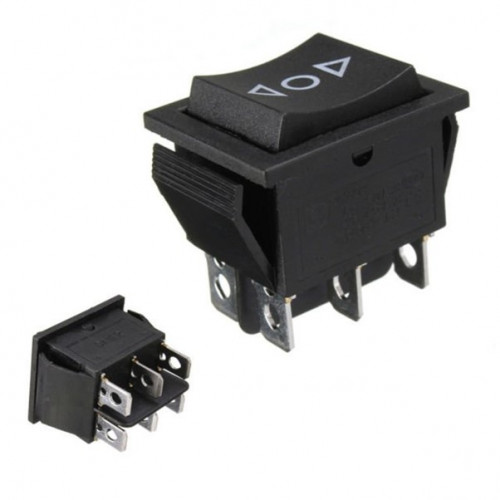

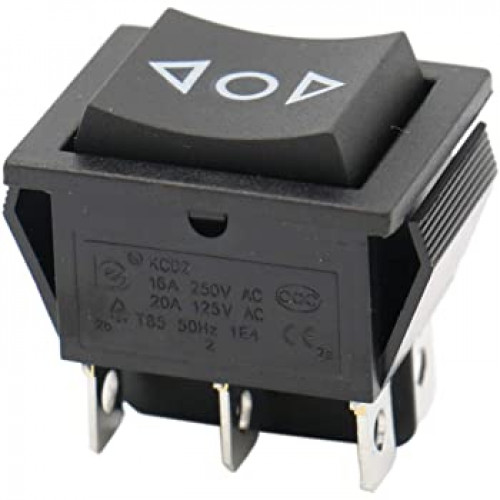

DPDT on-off-on Rocker Switch (16A) 6pins- Momentary (spring action)

DPDT On-Off-On Momentary Rocker Switch - 16A, 6-Pin, Spring Return

The DPDT On-Off-On Momentary Rocker Switch is designed for electronic control applications. It features a momentary action, returning to the center 'off' position upon release. A spring mechanism facilitates temporary switching operations. This switch has a current rating of 16A @ 250V AC / 20A @ 12V DC. The DPDT configuration supports control over two independent circuits or polarity reversal. Its 6-pin design allows for integration into panel-mount configurations. The black actuator contributes to extended operational life. This component is suitable for industrial, automotive, and DIY projects requiring precise control.

Specifications:

• Configuration: DPDT (Double Pole Double Throw)
• Switch Type: Rocker, Momentary On-Off-On (Spring Return)
• Current Rating: 16A @ 250V AC / 20A @ 12V DC
• Pins: 6
• Actuator Color: Black
• Mounting Type: Panel Mount
• Operating Temperature: –20°C to +85°C
• Length: 34 mm
• Width: 24 mm
• Height: 32 mm

Key features and benefits:

• DPDT configuration for dual-circuit control or polarity reversal.
• Momentary (spring return) action; resets to center 'off' position.
• Current rating: 16A @ 250V AC / 20A @ 12V DC.
• Black rocker actuator for operational longevity.
• 6-pin layout for panel mounting.
• Operating temperature range: –20°C to +85°C.
• Compact dimensions: 34 mm length, 24 mm width, 32 mm height.

Applications:

• Motor direction control (forward/reverse).
• Polarity switching in DC circuits.
• Automotive electrical systems.
• Power tools and machinery control.
• Industrial control panels.

Frequently Asked Questions:

Q: What does DPDT On-Off-On momentary mean?
A: DPDT (Double Pole Double Throw) indicates control over two separate circuits. On-Off-On describes the three positions. Momentary means the switch returns to the center 'off' position when released.

Q: What is the current rating of this DPDT rocker switch?
A: This switch is rated for 16A @ 250V AC and 20A @ 12V DC.

Q: How is this switch mounted?
A: This DPDT rocker switch is designed for panel mounting.
