MINI 12v 6015 DC FAN 60MM X 60MM X 15MM : Brushless Cooling Fan [High Quality]

Mini 12V 6015 Brushless DC Cooling Fan 60x60x15mm

The Mini 12V 6015 Brushless DC Cooling Fan is a compact and efficient cooling solution designed for electronic equipment requiring reliable airflow and heat dissipation. Measuring 60mm × 60mm × 15mm, this brushless fan operates on 12V DC and offers low-noise performance with long service life. It is widely used in SMPS power supplies, LED drivers, 3D printers, CCTV DVRs, networking equipment, DIY electronics, and industrial control systems.

Specifications:

• Fan Type: Brushless DC Cooling Fan
• Model Size: 6015
• Rated Voltage: 12V DC
• Fan Dimensions: 60 × 60 × 15 mm
• Bearing Type: Sleeve Bearing (or Ball Bearing depending on batch)
• Connector Type: 2-Wire
• Wire Length: Approximately 200mm (may vary by batch)
• Mounting Hole Configuration: 4 Corner Mounting Holes
• Rotation Direction: Standard Clockwise
• Operating Temperature: -10°C to +70°C (Typical)

Key features and benefits:

• Compact 6015 brushless DC cooling fan
• Operates on 12V DC supply
• Low noise and high airflow
• Long-life brushless motor design
• Low power consumption
• Easy installation with four mounting holes
• Suitable for continuous operation

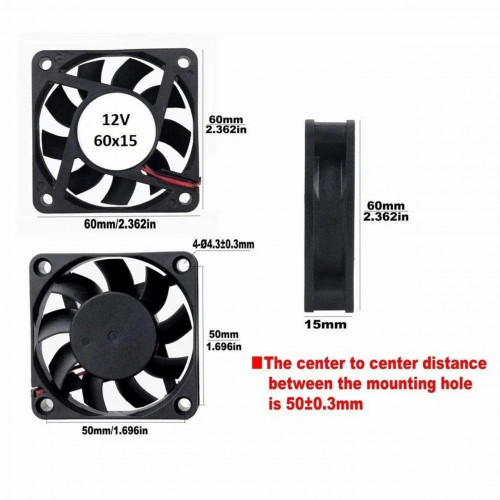

Package Dimensions

• Length: 60 mm
• Width: 60 mm
• Thickness: 15 mm
• Mounting Hole Diameter: Approximately 4 mm
• Mounting Hole Center Distance: Approximately 50 mm

Applications:

• SMPS power supplies
• LED drivers
• 3D printers
• CCTV DVR/NVR systems
• Network switches and routers
• Audio amplifiers
• Industrial control panels
• Electronic enclosures
• DIY cooling projects

Frequently Asked Questions:

Q: Can this fan be powered directly from a 12V battery or adapter?
A: Yes, it is designed to operate from a regulated 12V DC power source.

Q: Is this fan suitable for cooling an SMPS or LED power supply?
A: Yes, it is commonly used in SMPS units, LED power supplies, and electronic enclosures.

Q: Can I use this fan for a 3D printer?
A: Yes, if the required fan size is 60×60×15mm and the printer uses a 12V cooling fan.

Q: Is the fan quiet during operation?
A: Yes, the brushless motor design provides low-noise and reliable continuous operation.

Q: Does the fan come with mounting screws?
A: No, mounting hardware is generally not included unless specifically mentioned in the package contents.

Q: Can this fan run continuously for long periods?
A: Yes, it is designed for continuous cooling applications under normal operating conditions.

Q: Can I replace another 6015 12V cooling fan with this one?
A: Yes, provided the dimensions, voltage, connector type, and mounting hole positions match your existing fan.

Q: What should I verify before purchasing this cooling fan?
A: Check the operating voltage (12V DC), fan dimensions (60×60×15mm), connector type, mounting hole spacing, and airflow requirements to ensure compatibility with your equipment.

Package Includes:

*Image shown is a representation only.
