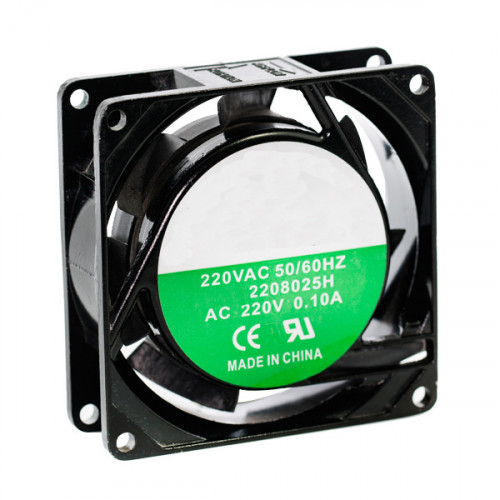

220V/240V AC Fan - 3" : 8025 (3 inch) Panel Cooling Fan Metal Body - [High Quality]

220V/240V AC 3-inch (80x80x25mm) 8025 Panel Cooling Fan - Aluminum Metal Body

This 220V/240V AC 3-inch (80x80x25mm) Panel Cooling Fan, Model 8025, operates on AC 220V/240V. It features an aluminum metal body. The fan's 5-blade design provides airflow. It maintains a low noise level during operation. This component prevents overheating within electronic systems. It contributes to extending the lifespan of valuable components. The fan is suitable for integration into panel boxes, industrial control cabinets, and various electronic enclosures.

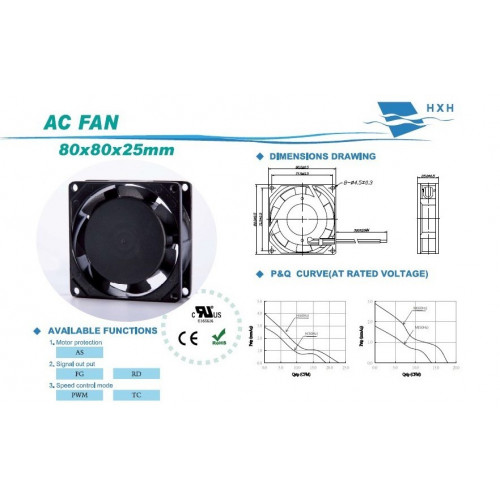

Specifications:

• Size: 3 × 3-inch (80x80x25mm)
• Voltage: AC 220V/240V
• Current: 0.07/0.1A +/- 10%
• Model: 8025
• Speed: 2500/2800 RPM
• Blades: 5
• Air Flow: 17/21 CFM
• Static Pressure: 2.03/3.03 mmH2O
• Noise Level: 30/34 dBA
• Body Material: Aluminium Metal
• Color: Black

Key features and benefits:

• Operates on 220V/240V AC power.
• Compact 3x3 inch (80x80x25mm) size.
• Robust aluminum metal body construction.
• Efficient 5-blade design delivers 17/21 CFM airflow.
• High rotational speed of 2500/2800 RPM.
• Maintains a noise output at 30/34 dBA.

Applications:

• Electronic system cooling
• Panel box ventilation
• Industrial control cabinets
• Power supply units
• DIY electronics projects

Frequently Asked Questions:

Q: What is the operating voltage for this fan?
A: This fan operates on AC 220V/240V.

Q: What are the physical dimensions of this fan?
A: The fan measures 3 × 3-inch (80x80x25mm).

Q: What is the body material of this fan?
A: The fan body is constructed from aluminum metal.

Q: What is the typical noise level during operation?
A: The noise level is 30/34 dBA.

Package Includes:

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
