FT232RL USB to UART TTL 3.3V / 5V Serial Adapter Module for Arduino

  • Product Code: TAP_FT232R_TTL
  • Availability: In Stock
  • ₹154.00
  • ₹110.00 (+ GST)


  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)

FT232RL USB to UART TTL 3.3V / 5V Serial Adapter Module for Arduino

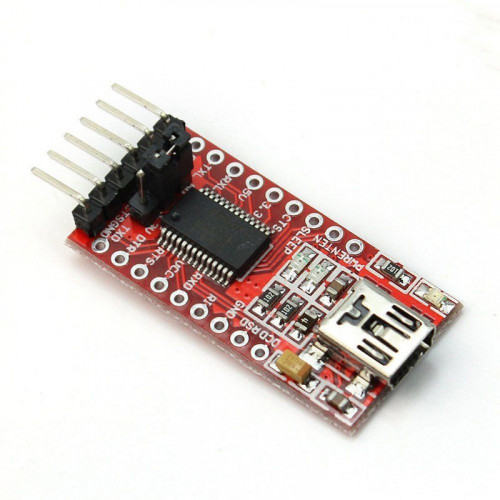

The USB TO UART TTL 5V 3.3V FT232RL Download Cable To Serial Adapter Module is a basic breakout board for the FTDI FT232RL USB to serial IC, Revision 2. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications.

The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector.

Specifications & Features
  • Standard interface layout, compatible with a variety of Arduinos such as the Pro Mini
  • Original FTDI FT232 chip, stable performance
  • USB power has current protection, using 500MA self-restore fuse
  • RXD/TXD transceiver communication indicator
  • With power, sending, receiving indicator, working status LED indicators
  • With 3.3V and 5V TTL Level supply options
  • USB to serial TTL module, download STC SCM
  • Mini USB Port Connection Support 3.3V, 5V
  • Single chip USB to asynchronous serial data transfer interface.
  • Entire USB protocol handled on the chip. No USB specific firmware programming required.
  • Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
  • Fully integrated USB termination resistors.
  • Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
  • Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
  • 128 byte receive buffer and 256 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
  • Weight: 4g

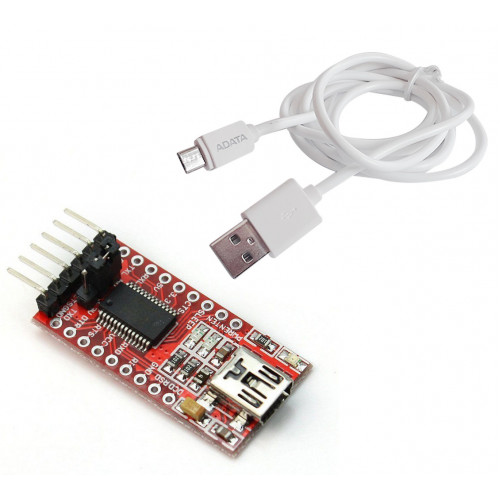

*Image shown is a representation only.




Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
