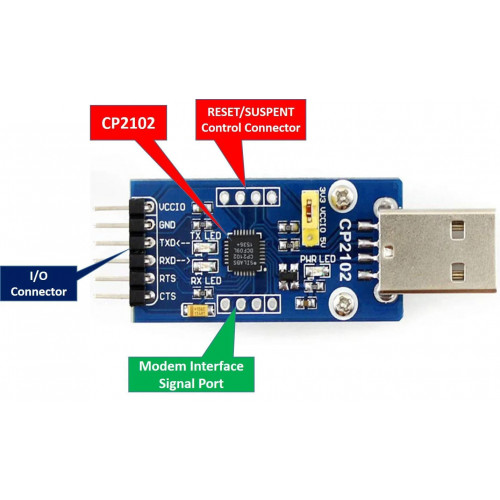

6pin CP2102 - USB-TTL UART Module 232 to 485 Board Serial Converter Multifunctional

CP2102 6-Pin USB to TTL/RS232/RS485 Multifunctional Serial Converter Module

This CP2102-based module offers seamless USB-to-serial communication. It supports TTL (UART), RS232, and RS485 interfaces, making it highly versatile for various projects. Designed for reliable performance, it's perfect for embedded development, industrial control, and microcontroller projects. Engineers and hobbyists will find it an essential tool. The compact board features a convenient 6-pin interface. Easily switch between protocols using simple jumper settings. It provides stable data transfer with built-in protection. Compatible with Windows, Linux, and macOS, ensuring broad usability. Simplify your debugging, data logging, and protocol conversion tasks. This multifunctional board is an essential tool for any electronics workbench.

Specifications:

• USB Interface: USB 2.0 (compatible with USB 3.0/1.1)
• Chipset: CP2102 (Silicon Labs)
• Supported Protocols: TTL (UART, 3.3V/5V), RS232, RS485
• Baud Rate: Up to 1 Mbps (UART/TTL)

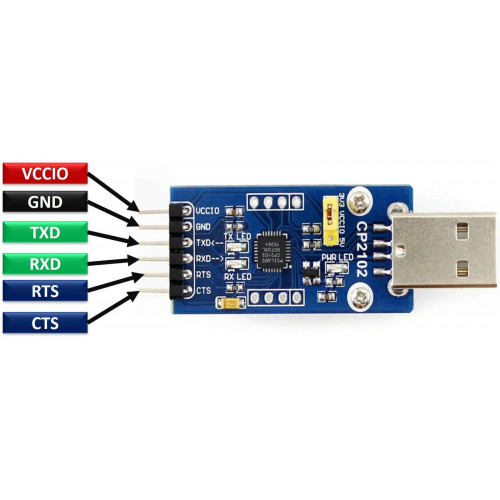

• Pins: 6-pin header (TXD, RXD, GND, VCC, D+/A, D-/B)
• TTL Voltage Levels: Selectable 3.3V / 5V
• Protection: Built-in ESD and surge protection
• OS Compatibility: Windows, Linux, macOS
• LED Indicators: TX, RX activity
• RoHS Compliant: Yes

Key features and benefits:

• Powered by Silicon Labs CP2102 for stable performance and wide OS driver support.
• Supports USB to TTL (UART), RS232, and RS485 communication modes.
• Versatile 6-pin interface with TXD, RXD, GND, VCC, and dedicated RS232/RS485 lines.
• Plug-and-play USB connectivity with automatic COM port assignment.
• Built-in ESD protection ensures stable and reliable data transfer.
• Compact, multifunctional design ideal for debugging and protocol conversion.
• Selectable 3.3V/5V TTL I/O levels for broad microcontroller compatibility.

Applications:

• Serial communication with microcontrollers like Arduino, STM32, and ESP32.
• Interfacing with industrial devices using RS232 and RS485 standards.
• USB-based data logging, diagnostics, and monitoring for electronic projects.
• Firmware flashing, programming, and debugging embedded systems.
• Implementation of Modbus RTU and other serial communication protocols.

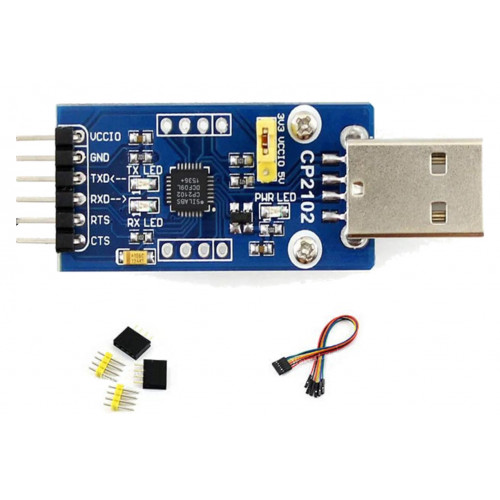

Package Includes:

*Image shown is a representation only.
