RF Encoder Decoder - (Tx-Rx) Module Board [High Quality]

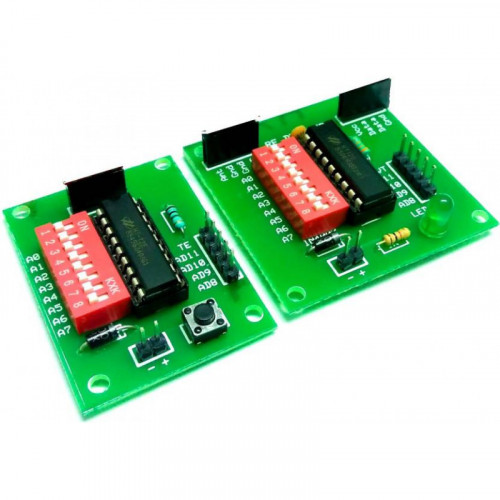

RF Encoder Decoder (Tx-Rx) Module Board Set with HT12E/D ICs

The RF Encoder Decoder (Tx-Rx) Module Board set provides a solution for wireless communication requirements. This board facilitates data transmission and reception in electronic projects. The set includes dedicated HT12E encoder and HT12D decoder ICs. Boards interface with microcontrollers via convenient breakout pins. A built-in DIP switch enables address selection for managing multiple modules. Both Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK) RF modules are supported. The compact design features high-quality PCB construction.

Specifications:

• Module Type: RF Encoder & Decoder (Tx-Rx) Board Set
• Encoder IC: HT12E
• Decoder IC: HT12D
• Supported Modulation: ASK (Amplitude Shift Keying), FSK (Frequency Shift Keying)
• Interfacing: Microcontroller compatible, Female Headers for RF modules
• Address Selection: DIP Switch
• Status Indicator: Transmit Status LED
• PCB Quality: High Quality

Key features and benefits:

• Seamless interfacing with RF modules via female headers.
• Dedicated breakout pins for direct microcontroller connection.
• Integrated DIP switch for unique address selection in multi-module setups.
• Status LED indicator for valid data transmission confirmation.
• Universal compatibility, supporting ASK and FSK RF modules.
• Compact design with high-quality, durable PCB construction.
• Includes HT12E encoder and HT12D decoder ICs.

Applications:

• Wireless remote control systems (e.g., garage doors, gates, lighting).
• Home automation projects requiring wireless connectivity.
• DIY robotics and drone control applications.
• Wireless sensor networks and data acquisition systems.
• Security systems and access control solutions.

Frequently Asked Questions:

Q: What ICs are included with the RF Encoder Decoder module set?
A: The set includes a dedicated HT12E encoder IC and an HT12D decoder IC for reliable operation.

Q: What modulation types are supported by these RF module boards?
A: The boards support both Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK) RF modules, offering broad compatibility.

Q: How is address selection managed for multiple RF modules?
A: Address selection is managed via an integrated DIP switch on each module board, crucial for multi-module setups.

Package Includes:

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
