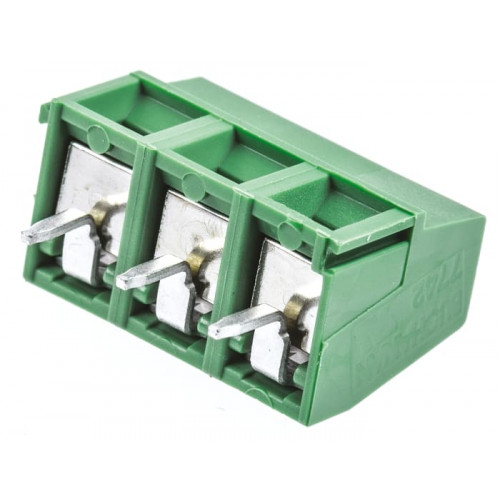

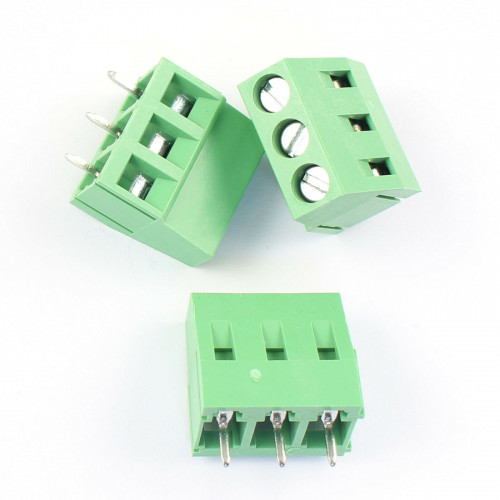

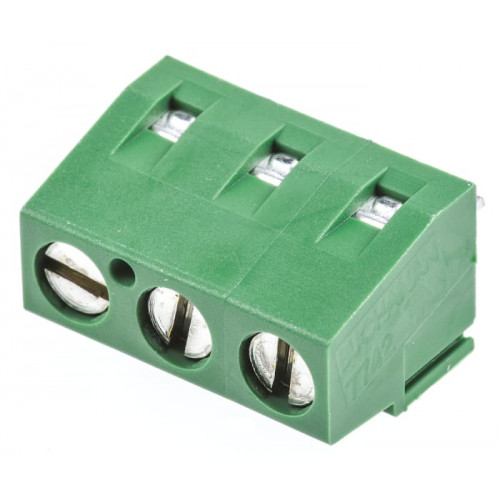

2pcs: 3 pin TBC Connector - 3pin Screw Terminal (5mm pitch) [part 128 / KF128-3p]

3-Pin TBC Screw Terminal Connector, 5mm Pitch, PCB Mount (2 Pcs) KF128-3p

The 3-Pin TBC Screw Terminal Connector is designed for PCB mounting applications. This component features a 5mm pitch, ensuring compatibility with standard circuit board layouts. It utilizes a screw terminal mechanism for secure and robust wire connections. The connector supports wire sizes ranging from 24 AWG to 12 AWG. It is rated for a maximum voltage of 320V and an operating current of 13.5A. An interlocking design allows for the creation of multi-pin configurations, such as 6-pin, 9-pin, or 12-pin blocks. This package includes two units of the KF128-3p connector. It is suitable for power connections, signal lines, and various prototyping requirements.

Specifications:

• Color: Green
• No. of Pins: 3
• Pitch (Lead spacing): 5mm
• Termination: Screw
• No. of Contacts: 3
• Allowed Wire Size (AWG): 24 - 12
• Voltage (V): 320
• Operating Current (A): 13.5A
• Mounting Type: Through Hole
• Length (mm): 15.24
• Width (mm): 8.2mm

Key features and benefits:

• Standard 3-pin configuration.
• 5mm pitch for PCB compatibility.
• Screw terminal for wire connection.
• Through-hole PCB mounting.

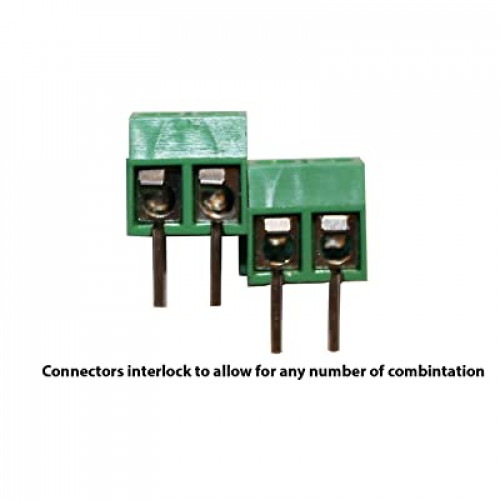

• Interlocking design for multi-pin block assembly (e.g., 6, 9, 12 pins).
• Supports 24-12 AWG wire sizes.
• Rated for 320V and 13.5A.

Applications:

• Prototyping and breadboard projects.
• Power supply connections on PCBs.
• Signal wiring in embedded systems.
• Custom electronic circuit designs.
• Industrial control panels and automation.

Frequently Asked Questions:

Q: What is the pitch of the 3-Pin TBC Screw Terminal Connector?
A: The 3-Pin TBC Screw Terminal Connector features a 5mm pitch (lead spacing).

Q: What wire sizes are compatible with this screw terminal connector?
A: This connector supports wire sizes ranging from 24 AWG to 12 AWG.

Q: Can multiple 3-Pin TBC connectors be combined?
A: Yes, the interlocking design allows for combining multiple units to create larger pin configurations, such as 6-pin, 9-pin, or 12-pin blocks.

Package Includes:

*Image shown is a representation only.
