2pcs: Press Switch 4pin TBC Connector - Splice lock Terminal (5mm pitch)

Press Switch 4-Pin TBC Splice Lock Terminal Connector, 5mm Pitch (2-Pack)

This package contains two Press Switch 4-Pin TBC Splice Lock Terminal Connectors. Each connector features a 5mm pitch. An integrated press switch mechanism enables solder-free wire termination. Each unit is rated for a maximum current of 5A and a maximum voltage of 290V. These connectors support power and signal distribution. A modular design allows for multi-pin configurations. These grey terminal blocks are suitable for prototyping and professional circuit assembly.

Specifications:

• Color: Grey
• Number of Pins: 4
• Number of Press Switches: 2
• Lead Space (Pitch): 5mm
• Maximum Current: 5A
• Maximum Voltage: 290V
• Mounting Type: PCB Mount
• Connector Type: Splice Lock Terminal Block

Key features and benefits:

• 4-Pin Terminal Block Connector (TBC) configuration.
• Integrated press switch for solder-free wire termination.
• 5mm pitch for PCB compatibility.
• Splice lock mechanism for secure wire connections.
• Modular design supports multi-pin configurations.
• Rated for 5A maximum current.
• Rated for 290V maximum voltage.
• Grey construction.

Applications:

• Prototyping and breadboard projects.
• Power supply connections in embedded systems.
• LED lighting control circuits.
• Industrial control panels.
• Sensor and actuator interfaces.
• DIY electronics assembly.

Frequently Asked Questions:

Q: What is the lead pitch of these connectors?
A: The connectors feature a 5mm pitch.

Q: What are the maximum current and voltage ratings?
A: Each connector is rated for a maximum current of 5A and a maximum voltage of 290V.

Q: How are wires terminated with these connectors?
A: Wires are terminated via an integrated press switch mechanism, enabling solder-free connections.

Q: What is the mounting type for these connectors?
A: These connectors are designed for PCB mounting.

Package Includes:

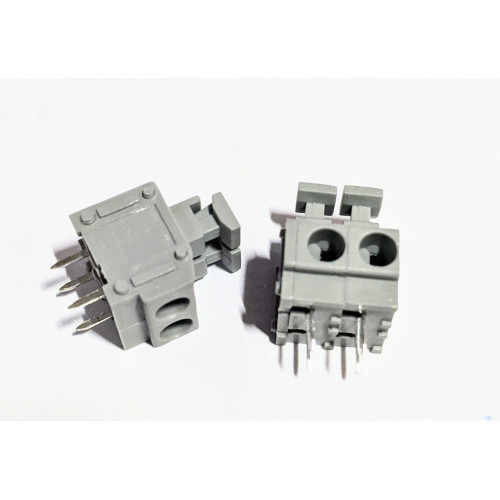

*Image shown is a representation only.
