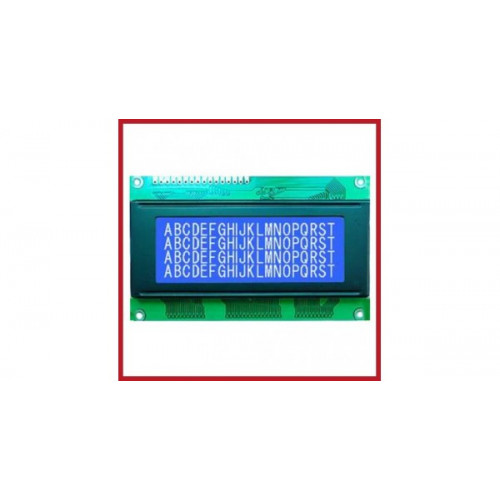

LCD 20X4 Alphanumeric Display with Blue Backlight

LCD 20X4 Alphanumeric Display with Blue Backlight

The LCD 20X4 Alphanumeric Display provides an interface for displaying text and data. It features 20 characters across 4 lines. A blue backlight enhances visibility. The module integrates an HD44780 display controller. It interfaces with microcontrollers such as Arduino and Raspberry Pi. Operation requires a +5V DC power supply. Contrast is adjustable via external voltage. The backlight can be switched On/Off.

Specifications:

• Display Format: 20 Characters x 4 Lines
• Controller IC: HD44780
• Operating Voltage: +5V DC
• Backlight Color: Blue
• Character Matrix: 5 x 7 Dots with Cursor
• Interface Type: Parallel
• Contrast Control: Adjustable via external voltage
• Backlight Control: Switchable On/Off
• Pin Count: 16 Pins

Key features and benefits:

• 20 Characters x 4 Lines Display Format
• Blue Backlight
• Integrated HD44780 Display Controller
• +5V DC Operating Voltage
• Adjustable Contrast
• Interfacing with microcontrollers
• 5x7 Dot Matrix Characters with Cursor
• Switchable Backlight

Applications:

• Embedded Systems Development
• DIY Electronics Projects
• Arduino & Raspberry Pi Interfaces
• Data Logging & Monitoring Displays
• Custom Control Panel Interfaces
• Educational Robotics & Electronics Kits

Frequently Asked Questions:

Q: What is the operating voltage of the LCD 20X4 display?
A: The LCD 20X4 display operates on a +5V DC power supply.

Q: Which controller IC is integrated into this LCD module?
A: This LCD module integrates the HD44780 display controller IC.

Q: How is the contrast adjusted on the LCD 20X4 display?
A: The contrast on the LCD 20X4 display is adjustable via an external voltage.

Package Includes:

*Image shown is a representation only.
