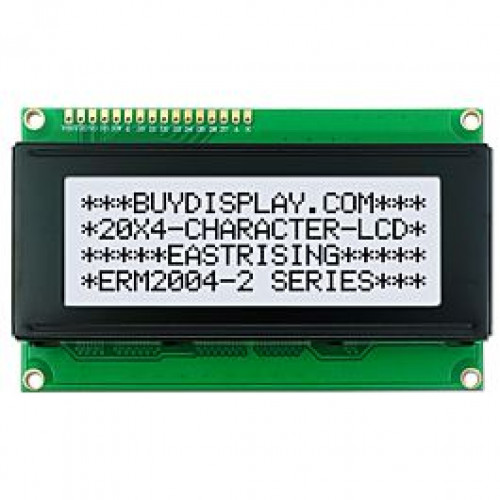

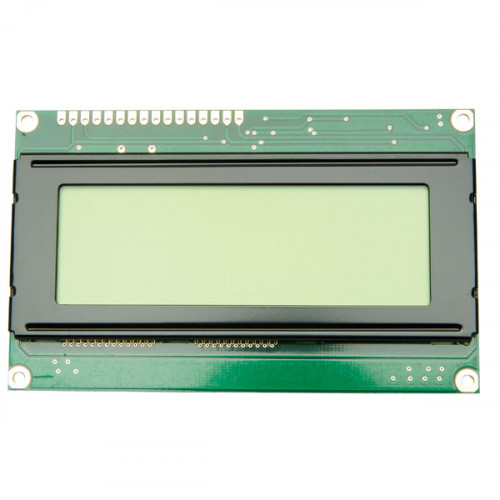

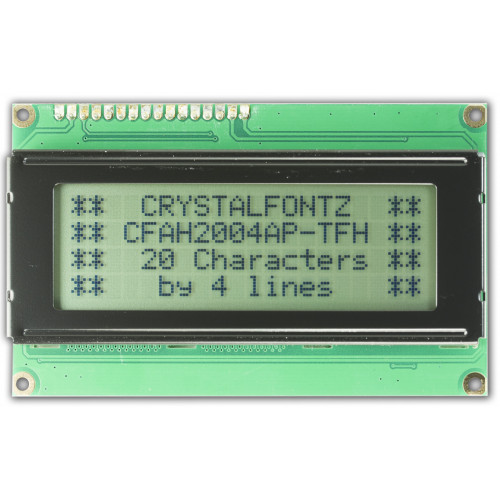

LCD 20X4 Alphanumeric Display with White Backlight

LCD 20x4 Alphanumeric Display with White Backlight

The LCD 20x4 Alphanumeric Display with White Backlight provides a 20-character by 4-line interface. It integrates an HD44780 display controller, ensuring compatibility with microcontrollers such as Arduino and Raspberry Pi. The display operates on a standard +5V DC power supply. A white backlight illuminates black text, maintaining visibility across various lighting conditions. Contrast is adjustable via a dedicated potentiometer pin. This component is suitable for data presentation in embedded systems.

Specifications:

• Display Type: Alphanumeric LCD
• Characters x Lines: 20 x 4
• Backlight Color: White
• Text Color: Black
• Controller IC: HD44780 compatible
• Operating Voltage: +5V DC
• Character Matrix: 5x7 Dots
• Interface: Parallel (standard)
• Contrast Control: Via potentiometer pin
• Pin Count: 16

Key features and benefits:

• 20 Characters x 4 Lines display capacity.
• White backlight with black text for visibility.
• Integrated HD44780 display controller.
• Compatible with Arduino and Raspberry Pi microcontrollers.
• Operates on a standard +5V DC power supply.
• Adjustable contrast control via a dedicated pin.
• 5x7 dot matrix character representation.

Applications:

• Embedded system user interfaces and control panels.
• DIY electronics projects and robotics displays.
• Data logging and sensor readout systems.
• Industrial equipment monitoring and status indicators.
• Educational kits and rapid prototyping.

Frequently Asked Questions:

Q: What is the operating voltage for this LCD?
A: The display operates on a standard +5V DC power supply.

Q: Which microcontrollers are compatible with this display?
A: This display is compatible with microcontrollers such as Arduino and Raspberry Pi, utilizing an HD44780 controller.

Q: How is the display contrast adjusted?
A: Contrast control is managed via a dedicated potentiometer pin.

Package Includes:

*Image shown is a representation only.
