LM3886 High-Performance 68W Audio Power Amplifier w/Mute

LM3886 High-Performance 68W Audio Power Amplifier IC with Mute

The LM3886 is a high-performance audio power amplifier integrated circuit designed for demanding audio applications. It delivers an impressive 68W of continuous average power into a 4Ω load and 38W into 8Ω, maintaining exceptional sound quality. This amplifier boasts an ultra-low THD+N of 0.03% across the audio spectrum, ensuring pristine audio reproduction. Featuring advanced Self Peak Instantaneous Temperature (°Ke) (SPiKe) protection circuitry, the LM3886 offers unparalleled reliability. This robust protection safeguards the output against overvoltage, undervoltage, overloads, and thermal runaway. With a signal-to-noise ratio greater than 92dB and a typical low noise floor of 2.0µV, it provides a clean and powerful audio signal. An integrated input mute function adds convenience for system control. The LM3886 stands out as a superior choice for high-fidelity audio systems and professional sound equipment.

Specifications:

• Output Power (4Ω): 68W Cont. Avg. at VCC = ±28V
• Output Power (8Ω): 38W Cont. Avg. at VCC = ±28V
• Output Power (8Ω): 50W Cont. Avg. at VCC = ±35V
• Instantaneous Peak Output Power: 135W
• Signal-to-Noise Ratio: ≥ 92dB
• THD+N (Total Harmonic Distortion + Noise): 0.03% (typical)
• IMD (SMPTE): 0.004% (typical)
• Noise Floor: 2.0µV (typical)
• Input Mute Function: Yes
• Protection Circuitry: SPiKe (Overvoltage, Undervoltage, Overload, Thermal Runaway)
• Package Type: 11-Lead TO-220
• Supply Voltage Range: 20V - 94V

Key features and benefits:

• Delivers 68W continuous average power into 4Ω (±28V)
• Provides 38W continuous average power into 8Ω (±28V)
• Integrated input mute function for system control
• Advanced SPiKe protection against overvoltage, overload, and thermal events
• Exceptional signal-to-noise ratio of ≥ 92dB
• Ultra-low THD+N of 0.03% at rated output
• Wide supply voltage range from 20V to 94V
• Compact 11-lead TO-220 package for easy integration

Applications:

• High-fidelity (Hi-Fi) audio systems
• Home theater amplifier designs
• Active studio monitor speakers
• Custom audio amplifier projects
• Professional audio equipment

Package Includes:

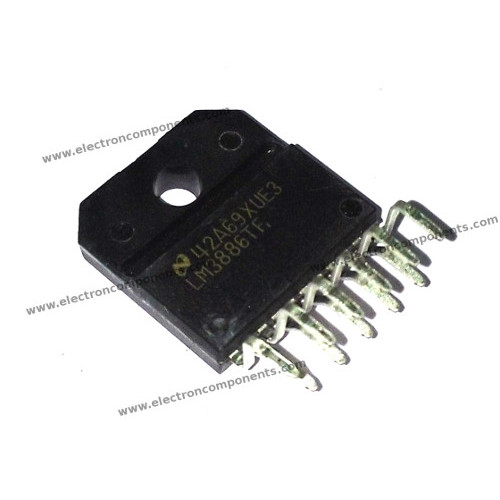

*Image shown is a representation only.
