4 pcs - BC546 NPN Amplifier transistor (original)
- Product Code: TR-BC546
- Availability: In Stock
-
₹7.00 (+ GST)
- 10 or more quantity/sets : ₹6.50
- 25 or more quantity/sets : ₹5.50
- 50 or more quantity/sets : ₹4.50
- 100 or more quantity/sets : ₹3.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
BC546 NPN General Purpose Transistor, TO-92 Package, 4 Pcs
The BC546 is an NPN general-purpose transistor. It operates in both amplification and switching circuits. This component exhibits low-noise characteristics. It is supplied in a TO-92 plastic package. The transistor supports collector currents up to 100 mA. It operates with voltages up to 65 V. This component is utilized in various electronic designs. This product includes four BC546 NPN transistors.
Specifications:
- Transistor Type: NPN
- Package Type: TO-92 (SOT54)
- Collector-Base Voltage (VCBO): 50V
- Collector-Emitter Voltage (VCEO): 45V
- Emitter-Base Voltage (VEBO): 6V
- Collector Current (IC) DC: 100 mA
- Collector Power Dissipation (PC): 500 mW
- Junction Temperature (TJ): 150 °C
- Storage Temperature (TSTG): -65 ~ 150 °C
Key features and benefits:
- NPN general-purpose transistor
- Low-noise amplification
- Switching circuit functionality
- TO-92 (SOT54) plastic package
- Collector current rating: 100 mA
- Voltage operation: up to 65 V
- Junction temperature rating: 150 °C
- Supplied as a 4-piece bundle
Applications:
- Small signal amplification
- Audio pre-amplifier and driver circuits
- General purpose switching applications
- Sensor interface and control systems
- Electronic prototyping and educational kits
Frequently Asked Questions:
Q: What is the pinout configuration for the BC546 TO-92 package?
A: The standard TO-92 pinout for the BC546 is Emitter-Base-Collector (EBC) when viewed from the front with the flat face towards you.
Q: Can the BC546 be used as a direct replacement for a BC547 or BC548?
A: The BC546 has a higher voltage rating than the BC547 and BC548. It can often be used as a replacement if the voltage requirements are within its limits.
Q: What is the maximum collector current the BC546 can handle?
A: The BC546 transistor supports a maximum DC collector current (IC) of 100 mA.
Q: How many BC546 transistors are included in this product?
A: This product includes four BC546 NPN transistors.
Package Includes:

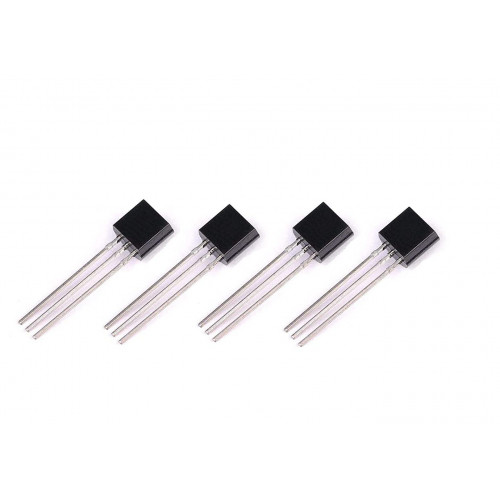

4 x BC546 NPN General Purpose Transistors.*Image shown is a representation only.
