PTC FRG70016F PTC-Fuse radial 16V / 7A resettable Fuse

PTC FRG70016F Radial Resettable Fuse - 16V / 7A Automatic Circuit Protection

The PTC FRG70016F is a high-performance radial resettable fuse designed for robust circuit protection. Engineered to safeguard your electronic devices, this fuse offers reliable overcurrent protection. Unlike traditional fuses, its resettable functionality eliminates the need for manual replacement after an overcurrent event, saving time and maintenance costs. It provides dependable protection at 16V and a 7A hold current. Its radial, through-hole design ensures easy integration into various PCB layouts. Built for durability, it operates efficiently across a wide temperature range from -40°C to 85°C. This fuse is also RoHS compliant, ensuring environmental safety. With a quick trip time of 8 seconds and a low initial resistance of 6 mOhms, it offers fast and effective protection. Part of the Fuzetec FRG series, it represents quality and advanced circuit safeguarding technology.

Specifications:

• Category: Circuit Protection PTC Resettable Fuses
• Make: Fuzetec
• Series: FRG
• Voltage - Max: 16V
• Current - Hold (Ih) (Max): 7 A
• Current - Trip (It): 11.9 A
• Time to Trip: 8 s
• Resistance - Initial (Ri) (Min): 6 mOhms
• Operating Temperature: -40°C ~ 85°C
• Mounting Type: Through Hole
• Package / Case: Radial, Disc
• RoHS Compliant: Yes

Key features and benefits:

• Resettable PTC technology for automatic recovery after overcurrent events
• 16V maximum voltage and 7A hold current for reliable circuit protection
• Radial, through-hole mounting for straightforward PCB integration
• Wide operating temperature range: -40°C to 85°C ensures versatility
• Fast trip time of 8 seconds for quick circuit isolation
• Low initial resistance (6 mOhms) minimizes power loss
• RoHS compliant for environmental safety and regulatory adherence

Applications:

• Consumer electronics (e.g., power adapters, gaming consoles)
• Industrial control systems and automation equipment
• Automotive electronics and infotainment systems
• Telecommunications infrastructure and networking devices
• Battery management systems and charging circuits
• USB peripherals and port protection

Package Includes:

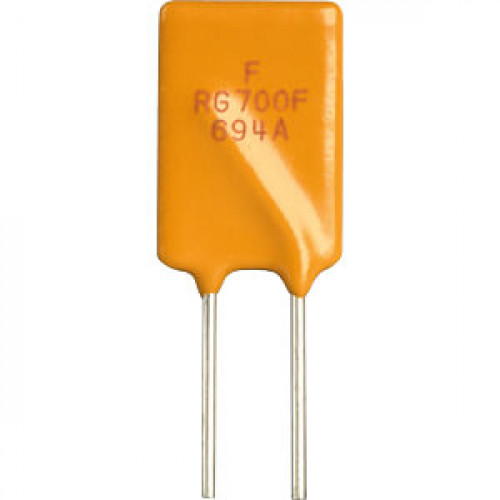

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
