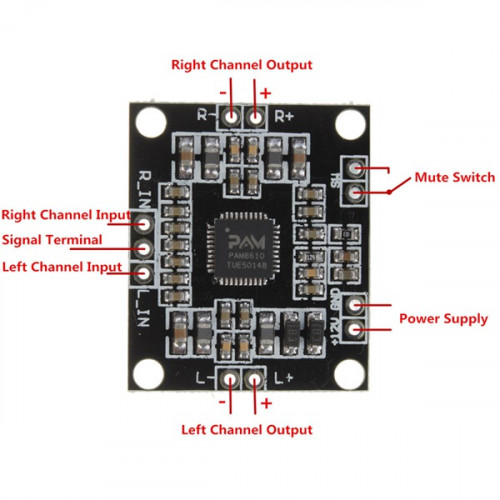

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output

The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors ICs.

The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40 pin QFN 6 x 6 mm package.

Specification:

• Model :PAM 8610
• Input Voltage (V) :7 ~ 15
• Working Mode :Class D (PWM modulation type)
• Power (W) :15

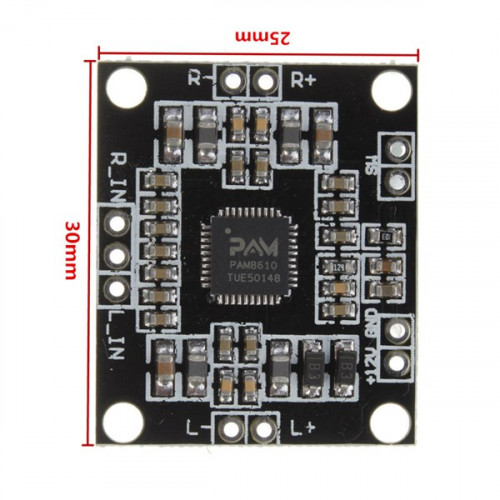

• Length (mm) :30.5
• Width (mm) :25.5
• Height (mm) :2.6
• Weight (gm) :5

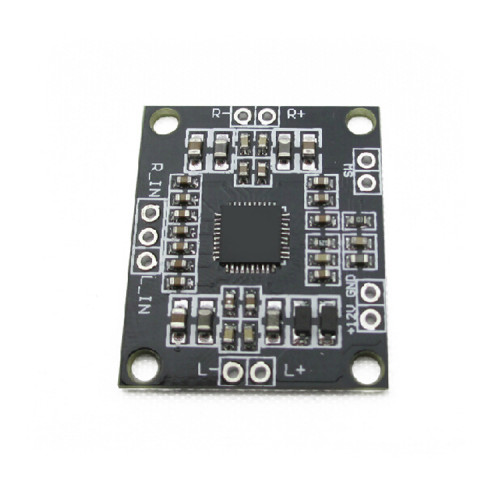

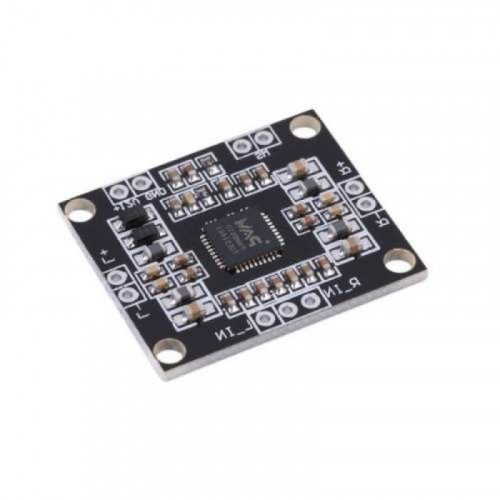

* Image is only for representations.
