MLT-8530 - 8.5 x 3 mm Electromagnetic Passive Buzzer : 3V - 5V – SMD

MLT-8530 8.5x3mm SMD Electromagnetic Passive Buzzer (3V-5V)

The MLT-8530 is an 8.5 x 8.5 x 3 mm electromagnetic passive buzzer. This surface-mount (SMD) component operates across a 3V to 5V voltage range. It delivers an 80 dB sound output at 5V. As a passive buzzer, it requires an external square wave signal, typically 4 kHz. This allows for customizable tones. Its side-firing design projects sound. It provides audio feedback. Applications include alarms, timers, and DIY prototypes.

Specifications:

• Size: 8.5 x 8.5 x 3 mm
• Voltage Range: 3V - 5V
• Sound Pressure Level (SPL): 80 dB at 5V, 10 cm
• Resonant Frequency: 2700 Hz
• Frequency Range: 100 Hz - 10 kHz
• Coil Resistance: 16 ± 3 ohms
• Operating Temperature: -20°C to +70°C
• Mounting Type: Surface-mount (SMD)
• Sound Emission: Side-firing

Key features and benefits:

• 8.5 x 8.5 x 3 mm dimensions
• Operating voltage range: 3V to 5V
• 80 dB sound output at 5V (10 cm distance)
• Passive design requires external signal for tone generation
• Surface-mount (SMD) with side sound emission
• Coil resistance: 16 ± 3 ohms
• Frequency range: 100 Hz - 10 kHz

Applications:

• Alarms in consumer electronics (clocks, timers, kitchen appliances)
• Audio notifications in wearables (smartwatches, fitness trackers)
• Sound modules in DIY projects (Arduino, Raspberry Pi)
• Warning signals in industrial machinery or control panels
• Alerts in portable medical diagnostic tools

Frequently Asked Questions:

Q: What voltage range does the MLT-8530 operate within?
A: The MLT-8530 operates within a 3V to 5V voltage range.

Q: Does this buzzer generate its own tone?
A: No, as a passive buzzer, it requires an external square wave signal, typically 4 kHz, to generate tones.

Q: What are the physical dimensions of the MLT-8530?
A: The MLT-8530 has dimensions of 8.5 x 8.5 x 3 mm.

Q: What is the mounting type for this buzzer?
A: This buzzer is designed for surface-mount (SMD) applications.

Q: What is the sound output level?
A: It delivers an 80 dB sound output at 5V, measured at 10 cm.

Package Includes:

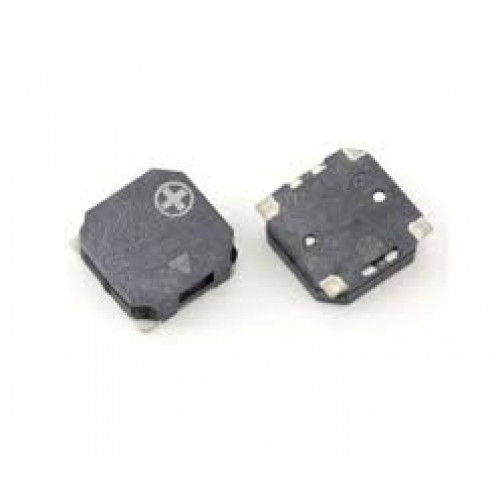

*Image shown is a representation only.
