LM386 SOIC8 SMD- Low Voltage Audio Amplifier IC (Original)

LM386 SOIC8 SMD: Original Low Voltage Audio Amplifier IC for Portable Devices

The LM386 SOIC8 SMD is an original low-voltage audio amplifier IC, engineered for consumer applications. It delivers robust audio performance with minimal external components, simplifying your designs. Its internal gain is factory-set to 20, but can be easily adjusted up to 200 for higher amplification needs. Operating efficiently from a wide 4-12 volt supply, it's perfectly suited for battery-powered projects. With a low quiescent power drain of just 24 milliwatts, it ensures extended battery life in portable devices. The compact SOIC8 SMD package makes it an excellent choice for modern, space-saving electronic designs. Experience clear, reliable sound output for portable audio devices, intercoms, and various low-power amplification projects. This original LM386 IC is a top choice for efficient and high-quality audio amplification.

Specifications:

• Package Type: SOIC8 SMD
• Product Type: Audio Amplifier IC
• Supply Voltage Range: 4V to 12V
• Internal Gain: 20 dB (Adjustable up to 200)
• Number of Channels: 1 Channel
• Quiescent Power Drain: 24 mW (typ.)
• Power Dissipation (Pd): 730 mW
• Input Bias Current (Ib): 250 nA
• Power Supply Rejection Ratio (PSRR): 50 dB
• Operating Supply Current: 4 mA
• Length: 4.9 mm
• Height: 1.45 mm

Key features and benefits:

• Designed for efficient battery operation
• Requires minimum external components
• Wide supply voltage range: 4V to 12V
• Low distortion for clear audio output
• Compact SOIC8 SMD package for space-saving designs
• Internally set gain of 20, adjustable up to 200
• Low quiescent power drain (24mW) for extended battery life

Applications:

• AM-FM radio amplifiers
• Portable audio devices (e.g., tape players)
• Intercom systems
• Small servo drivers
• General low-power audio amplification projects

Package Includes:

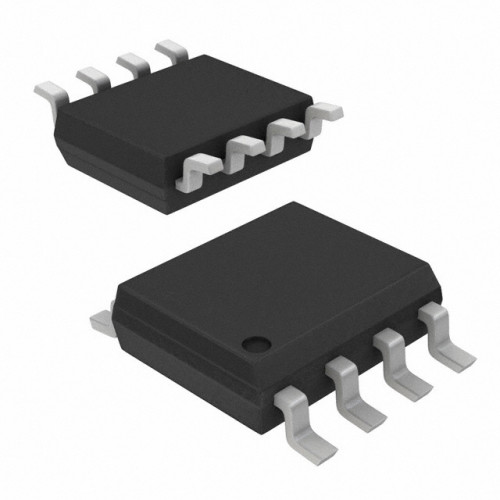

*Image shown is a representation only.
